Seat Heating Control Module Connector End View (J882, T16d, J882)
Seat Heating Control Module Connector End View (J882, T16d, J882)

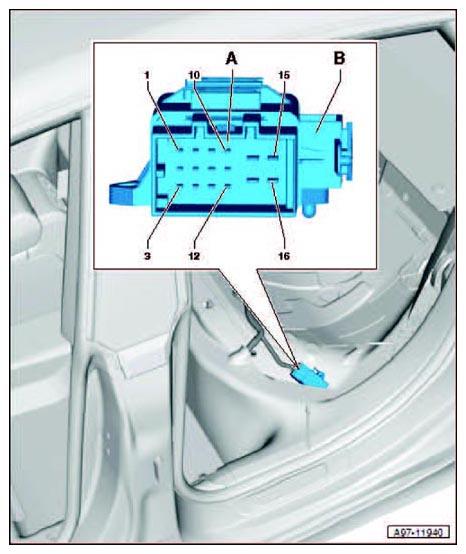

Fig 1: Seat Heating Control Module Connector End View (J882, T16d, J882)
Courtesy of AUDI OF AMERICA, LLC
A
16-Pin Connector -T16d-, black
B
Seat Heating Control Module -J882-
