Transmission Tightening Specifications

NOTE:

The tightening specifications apply only to lightly greased, oiled, phosphated or blackened nuts and bolts.

Additional lubricant such as engine or transmission oil may be used, but do not use graphite lubricant.

Do not use any ungreased parts.

Tightening specification tolerance ± 15%.

Component		Nm
Bolts and nuts	M6	9
	M7	15
	M8	20
	M10	40
	M12	65
Dual-mass flywheel to drive plate		60 ¹⁾
¹⁾ Replace the bolts.

NOTE:

The bolt -2- secures the starter to the transmission for 4 cylinder vehicles and also has a spacer sleeve -arrow-.

Fig 1: Identifying Bolt & Spacer Sleeve

Courtesy of AUDI OF AMERICA, LLC

Mounting the multitronic 0AW FWD to a 4-cylinder TFSI engine 2.0L

Fig 2: Identifying Transmission / Engine Bolts

Courtesy of AUDI OF AMERICA, LLC

Item	Bolt	Nm
1 ¹⁾	M10 x 50 ²⁾	65
2 ³⁾ , 7	M12 x 100 ⁴⁾	30 + 90°
3 ⁵⁾ , 6	M12 x 75 ⁴⁾	30 + 90°
4, 5 ⁵⁾	M12 x 120 ⁴⁾	30 + 90°
8 to 10	M10 x 75 ⁴⁾	15 + 90°
11	M12 x 50 ⁴⁾	30 + 90°
A	Alignment sleeves for centering
¹⁾ also secures the starter. ²⁾ Bolt strength rating 10.9 There is no limit to the number of times the steel bolt can be used again. ³⁾ also secures that starter; with an additional spacer sleeve between the starter and the transmission. ⁴⁾ The aluminum bolts can be used twice, refer to TRANSMISSION TIGHTENING SPECIFICATIONS . ⁵⁾ also secures the wire bracket.

Mounting the multitronic 0AW FWD to a 4-cylinder TFSI engine 2.0L

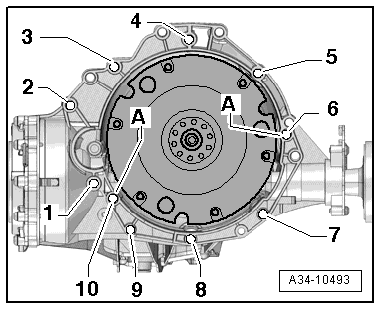

Fig 3: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

Item	Bolt	Nm
1 ¹⁾	M10 x 50 ²⁾	65
2 ³⁾	M12 x 100 ⁴⁾	30 + 90°
3 ⁵⁾ , 6	M12 x 75 ⁴⁾	30 + 90°
4, 5 ⁵⁾	M12 x 120 ⁴⁾	30 + 90°
7 to 9	M10 x 75 ⁴⁾	15 +90°
10	M12 x 50 ⁴⁾	30 + 90°
A	Alignment sleeves for centering
¹⁾ Mount the auxiliary adapter ²⁾ Bolt strength rating 10.9. There is no limit to the number of times steel bolts may be used. ³⁾ also secures that starter; with an additional spacer sleeve between the starter and the transmission. ⁴⁾ The aluminum bolts can be used twice, refer to TRANSMISSION TIGHTENING SPECIFICATIONS . ⁵⁾ also secures the wire bracket.

Mounting the multitronic 0AW FWD to a 6-cylinder FSI 2.8L and 2.5L engine and 6-cylinder TDI 3.0L engine

Fig 4: Checking If Alignment Sleeves -A- For Centering Engine/Transmission Are In Cylinder Block

Courtesy of AUDI OF AMERICA, LLC

Item

Bolt

1 ¹⁾

M10 x 50 ²⁾

2 ³⁾ to 6

M12 x 100 ⁴⁾

30 + 90°

M12 x 125 ⁴⁾

30 + 90°

8, 11

M10 x 60 ⁴⁾

15 + 90°

9, 10

M10 x 95 ⁴⁾

15 + 90°

Alignment sleeves for centering

¹⁾ Mount the auxiliary adapter
²⁾ Bolt strength rating 10.9 There is no limit to the number of times the steel bolt can be used again.
³⁾ Mount the auxiliary adapter.
⁴⁾ The aluminum bolts can be used twice, refer to TRANSMISSION TIGHTENING SPECIFICATIONS .

⁽¹⁾	To prevent damaging the bolts when marking them, do not clamp them in a vise. Insert the bolt using a 14 mm socket with a /₂ drive, which is inserted in to the vise, as illustrated.

The aluminum bolts may be used two times. Therefore, the bolts must be marked with two notches "X" made by a chisel after they have be used the first time -arrow-.

Fig 5: Identifying Bolts Marked With An "X" May Not Be Used Again
Courtesy of AUDI OF AMERICA, LLC
Bolts marked with an "X" may not be used again.
