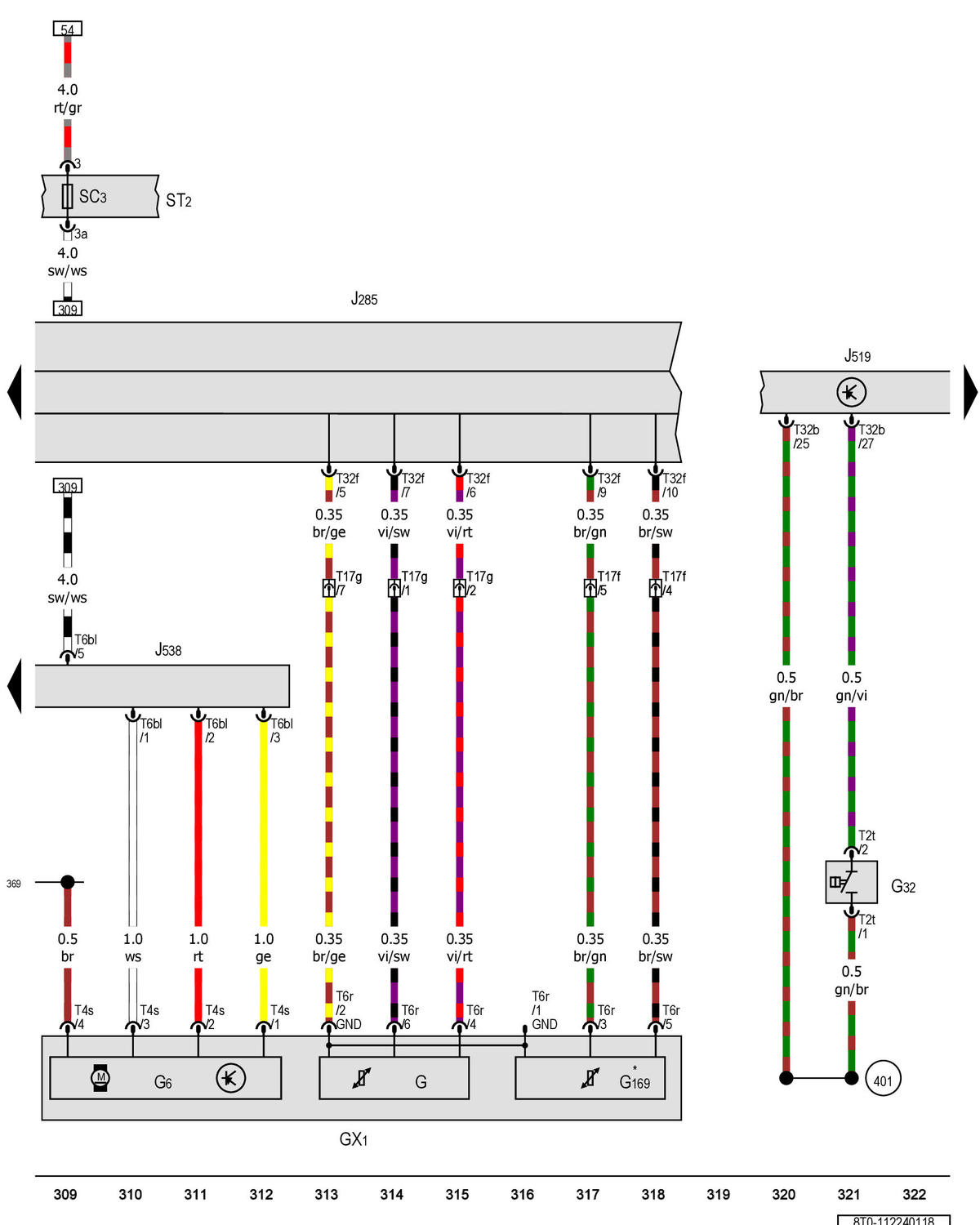

Engine Coolant Level Sensor, Instrument Cluster Control Module, Vehicle Electrical System Control Module, Fuel Pump Control Module: Notes

GWW8T0-112240118

Courtesy of AUDI OF AMERICA, LLC
