Outside Air Temperature Sensor -G17-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front bumper cover -2-. Refer to Front Bumper Cover .

-- Disconnect the connector from the Outside Air Temperature Sensor -G17- -1-.

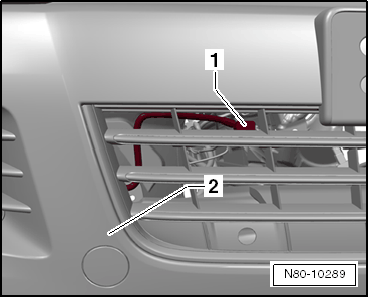

Fig 1: Identifying Outside Air Temperature Sensor -1-
GWWN80-10289Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Outside Air Temperature Sensor -G17- -1- from the mount.
