Engine Control Module (ECM) Connector End View (J623, T81, T40)

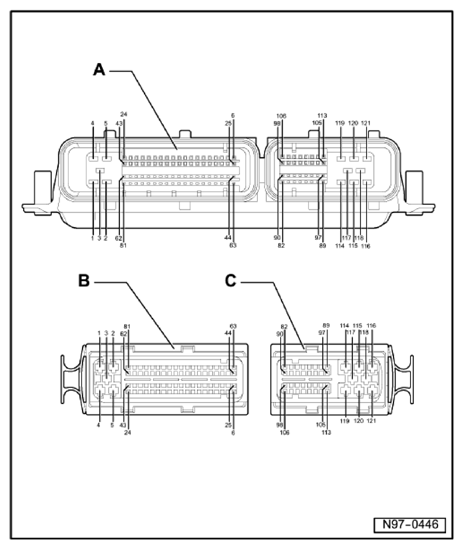

Fig 1: Engine Control Module (ECM) Connector End View (J623, T81, T40)
G10359862
A Engine Control Module (ECM) -J623-
B 81-Pin Connector -T81-, black on wiring harness
C 40-Pin Connector -T40-, black on wiring harness
