Outside Air Temperature Sensor -G17- Engine Code(S): CEPB

WARNING: This page is about a different variant/trim than selected.

Removing

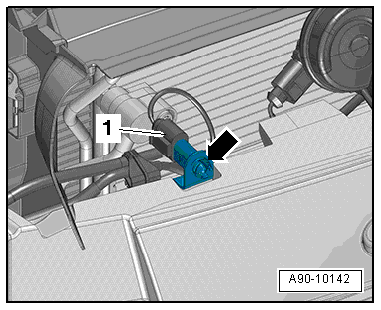

Fig 1: Identifying Outside Air Temperature Sensor

Courtesy of AUDI OF AMERICA, LLC

-- Remove front bumper cover. Refer to Removal and Installation .

-- Disconnect electrical connector -1-.

-- Carefully press retaining clips together -arrow- and remove outside air temperature sensor from bracket toward the rear.

Installing

Install in reverse order of removal. Note the following:

-- Install front bumper cover. Refer to Removal and Installation .
