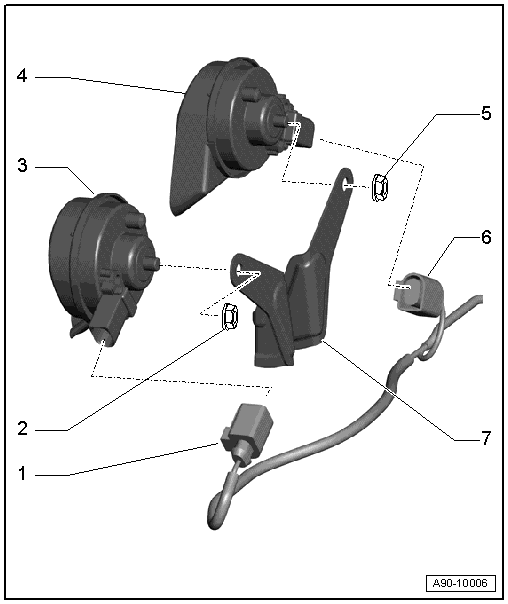

Signal Horns Overview
WARNING: This page is about a different variant/trim than selected.
Observe notes on contact corrosion. Refer to CONTACT CORROSION .
- Electrical Connector
- For High Tone Horn -H2-
- Nut
- 9 Nm
- High Tone Horn -H2-
- Removing and installing, refer to HORNS -H2- / -H7- .
- Low Tone Horn -H7-
- Removing and installing, refer to HORNS -H2- / -H7- .
- Nut
- 9 Nm
- Electrical connector
- For Low Tone Horn -H7-.
- Bracket
- For signal horns.
