Rear Abs Wheel Speed Sensor Assembly Overview, AWD

NOTE:

The ABS sensor ring/rotor is installed in the respective wheel bearing unit and should not be replaced. Refer to Description and Operation .

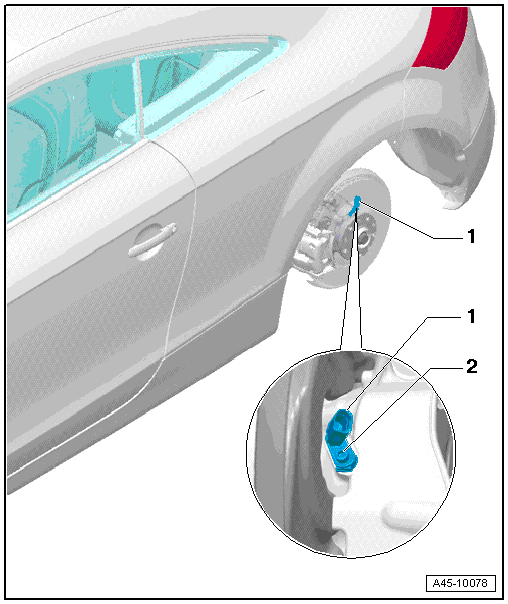

Fig 1: Rear ABS Wheel Speed Sensor Assembly Overview, AWD

Courtesy of AUDI OF AMERICA, LLC

Right Rear ABS Wheel Speed Sensor -G44- /Left Rear ABS Wheel Speed Sensor -G46-
- Removing and installing, refer to REAR ABS WHEEL SPEED SENSOR, AWD
Bolt
- 8 Nm
