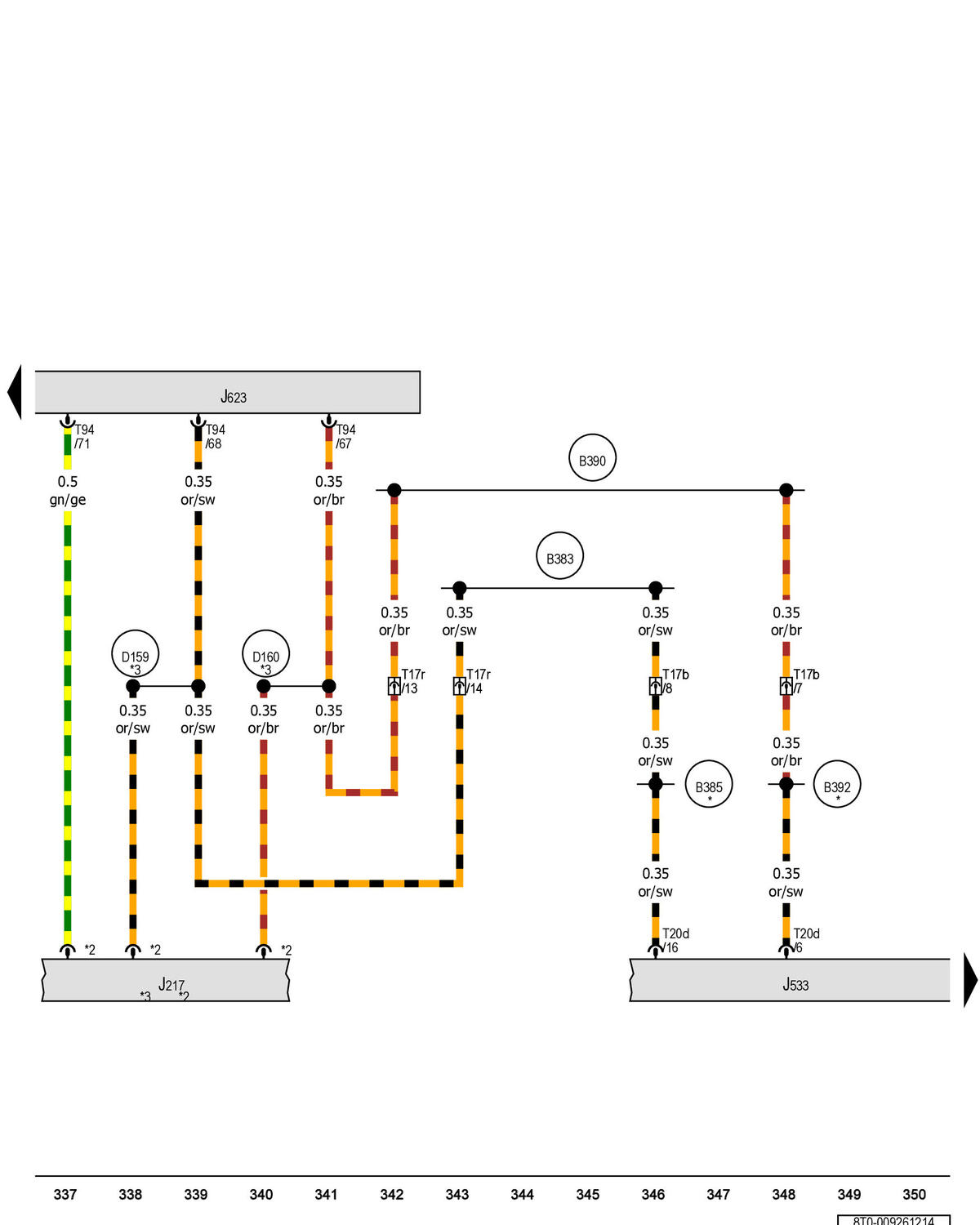

Transmission Control Module, Data Bus On Board Diagnostic Interface, Engine Control Module: Notes

GWW8T0-009261214

Courtesy of AUDI OF AMERICA, LLC
