Selector Lever Sensor System Control Module -J587-

Removing

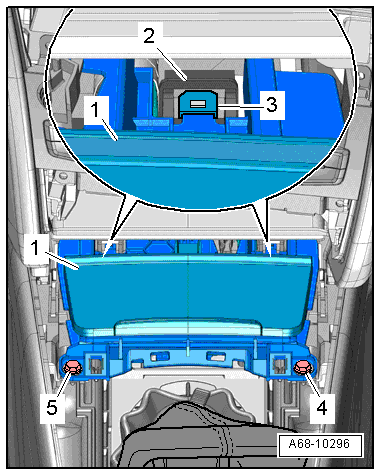

Fig 1: Removing Ashtray

Courtesy of AUDI OF AMERICA, LLC

-- Remove the selector lever handle. Refer to SELECTOR LEVER HANDLE .

-- Remove the multimedia system control head -E380-. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING .

-- Remove the front ashtray. Refer to CENTER CONSOLE .

-- Disconnect the connector -1-.

Fig 2: Selector Lever Sensor System Control Module J587 And Tiptronic Switch F189

Courtesy of AUDI OF AMERICA, LLC

-- Release the 4 tabs -arrows- and remove the selector lever sensor system control module.

NOTE:

Ignore -arrows A-.

Installing

Install in reverse order of removal. Note the following:

-- Lock the selector lever sensor system control module with the 4 tabs -arrows-.

-- Connect the electric wire to the selector lever transmission range position display unit -Y26- -arrows-.

-- Install the front ashtray. Refer to CENTER CONSOLE .

-- Install the selector lever handle. Refer to SELECTOR LEVER HANDLE .
