Comfort System Central Control Module -J393-, Not Applicable From June 2009

Component Location

Under Left Parcel Shelf -5-

Pin Arrangements

Courtesy of AUDI OF AMERICA, LLC

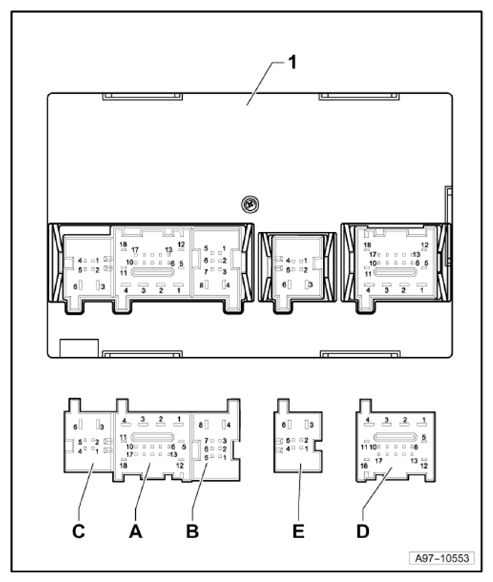

1. Comfort System Central Control Module -J393-

1. 18-Pin Connector -T18B-, Brown
2. 8-Pin Connector -T8B-, Black
3. Not Used
4. 18-Pin Connector -T18D-, Black
5. 6-Pin Connector -T6F-, Black

Courtesy of AUDI OF AMERICA, LLC

Back To Overview  → OVERVIEW OF CONTROL MODULES  .
