Component Location And Pin Arrangements, Through May 2009

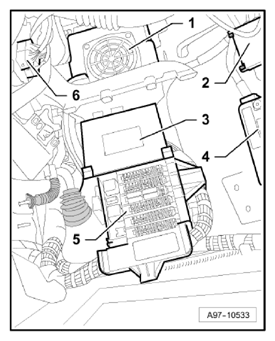

Component Location

In Front Right Footwell -3-.

1. Center Speaker -R148-
2. Main Distribution
3. Vehicle Electrical System Control Module -J519-
4. Main Fuse Panel
5. Relay and fuse carrier (in front right footwell)
6. Connector station behind right center console

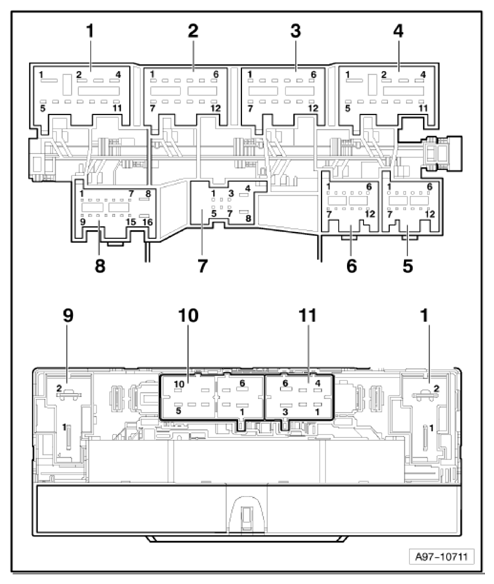

   Pin Arrangements

Courtesy of AUDI OF AMERICA, LLC

1. 11-Pin Connector -T11A-, Black
2. 12-Pin Connector -T12B-, Black
3. 12-Pin Connector -T12C-, Brown
4. 11-Pin Connector -T11B-, Brown
5. 16-Pin Connector -T16A-, Black
6. 8-Pin Connector -T8A-, Black
7. 12-Pin Connector -T12A-, Black
8. Not Used
9. Not Used
10. 10-Pin Connector -T10A-, Black
11. 6-Pin Connector -T6A-, Black
12. Double Connector -T2A-, Black

Courtesy of AUDI OF AMERICA, LLC
