Component Location And Pin Arrangements, From June 2009

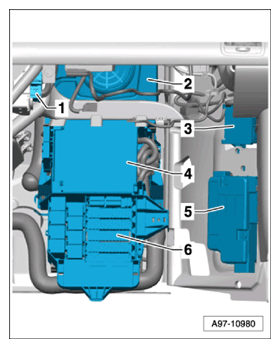

Component Location

In Front Right Footwell -4-.

  1. Connector station behind right center console
  2. Center Speaker -R148-
  3. Main Distribution
  4. Vehicle Electrical System Control Module -J519-
  5. Main Fuse Panel
  6. Relay and fuse carrier (in front right footwell)

    Pin Arrangements

G12777856Courtesy of AUDI OF AMERICA, LLC
  1. 52-Pin Connector -T52A-, Black
  2. 52-Pin Connector -T52B-, Yellow
  3. 52-Pin Connector -T52C-, Brown
G12777857Courtesy of AUDI OF AMERICA, LLC
