Garage Door Opener Control Module -J530-

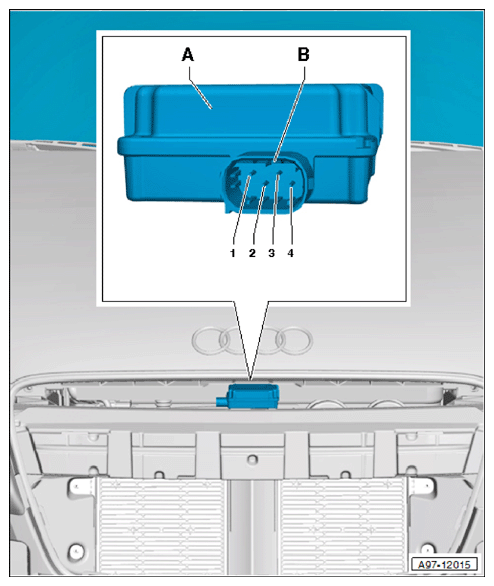

Component Location

Behind Front Bumper Trim.

  1. Garage Door Opener Control Module -J530-
  2. 4-Pin Connector -T4p-
G12777887Courtesy of AUDI OF AMERICA, LLC
