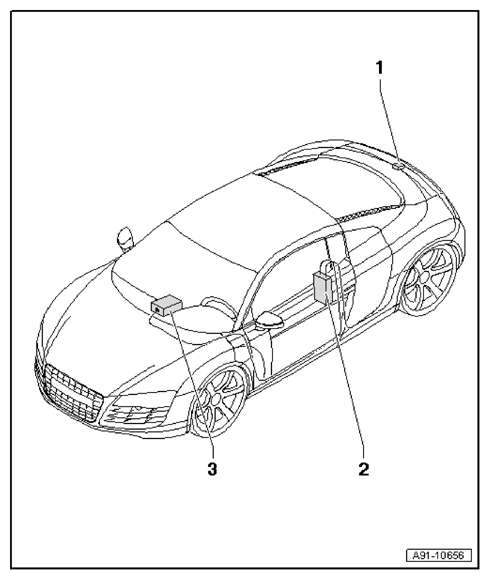

Rearview Camera System Component Overview: Notes

1. Rear View Camera -R189- → REARVIEW CAMERA
   • In Rear Bumper Between The License Plate Lights
2. Rear View Camera System Control Module -J772- → REARVIEW CAMERA SYSTEM CONTROL MODULE
   • Located Under The Left Side Of Rear Shelf
3. Navigation System with CD Drive Control Module -J401-
   • In Instrument Panel

Courtesy of AUDI OF AMERICA, LLC
