Lower Intake Manifold With Fuel Rail: Installing

Installation is in reverse order of removal, note the following:

NOTE:

Replace seals and O-rings.

Lubricate the fuel injector O-rings lightly with clean engine oil.

-- Press lower section of the intake manifold with the fuel rail evenly onto the fuel injectors.

-- Tighten bolts and nut -arrows- on the lower section of the intake manifold diagonally in stages.

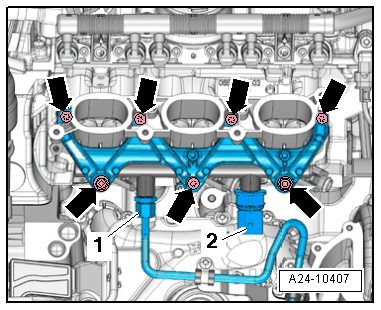

Fig 1: Disconnecting Fuel Injector Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connector -2- on the fuel pressure sensor -G247-.

-- Install high pressure line -1- on the fuel rail. Refer to HIGH PRESSURE LINES .

Fig 2: Fastening High-Pressure Line At Fuel Rail Using Torque Wrench VAS1331 With Open End Wrench Socket VAS1331/2

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Check fuel system for leaks.
