Rear Axle Camber, Adjusting: Procedure

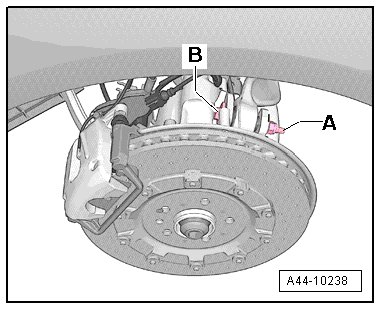

-- Remove the nut -A- of threaded connection of wheel bearing housing/control arm, and screw on new nut until stop.
-- Adjust the camber by rotating the adjusting bolt -B-. To turn the adjusting bolt -B-, turn the hex head at the top of the bolt.
Axle alignment specified values, refer to WHEEL ALIGNMENT SPECIFIED VALUES .
NOTE:
The maximum adjustment range is 135° to left or right of center position.
Do not rotate the adjusting bolt -B- further once the end position has been reached or the components will be damaged.
For a better illustration, camber adjustment is shown with wheel removed.
-- Tighten nut -A-, refer to OVERVIEW - TRANSVERSE LINK .
-- After tightening nut -A-, check camber value once more, refer to WHEEL ALIGNMENT SPECIFIED VALUES .
