Update - TCM Software Update (NVLW) (GROUP 37, NO. 12-47)

UPDATE - TCM SOFTWARE UPDATE (NVLW)

TECHNICAL SERVICE BULLETIN

37 12 47 2027798/3 April 16, 2012. Supersedes Technical Service Bulletin Group 37 number 11 - 28 dated November 2, 2011 for reasons listed below.

Model(s)	Year	VIN Range	Vehicle-Specific Equipment
A4	2011	BA128332 - BA999999 (Ingolstadt) BN046183 - BN999999 (Neckarsulm)	8 speed automatic
A4	2012	CA000001 - CA069480 (Ingolstadt) CN000001 - CN009695 (Neckarsulm)
A5	2011	BA064365 - BA999999
	2012	CA000001 - CA006578
A5 Cabriolet	2011	BN014608 - BN999999
	2012	CN000001 - CN002037
A8	2012	CN000001 - CN013512
A8 L
Audi Q5	2011	BA085167 - BA999999
	2012	CA000001 - CA043403

CONDITION

REVISION HISTORY
Revision	Date	Purpose
3	-	Revised Service  (Updated SVM codes)
2	11/2/2011	Revised Service  (Added Criteria) Revised Warranty  (Updated Labor Operations)
1	10/11/2011	Original publication

This Update has been proactively released to prevent the following condition from occurring in the vehicle:

For the A4, A5, A5 Cabriolet, Audi A8 and Audi Q5 with 8 speed transmissions there may be a hesitation complaint or shift quality concerns that will require a software update to the transmission control unit.

This Update is in effect until removed.

Vehicle must meet all of the following criteria:

• Procedure is valid only for vehicles that show the 37G1 code in the ElsaWeb Campaign/Action Information screen on the day of repair.
• Vehicle must be within the New Vehicle Limited Warranty.
• Procedure must be performed within the allotted time frame stated in this Technical Service Bulletin.
• Procedure must be performed on applicable vehicles in dealer inventory prior to sale.

TECHNICAL BACKGROUND

For select A4, A5, A5 Cabriolet, Audi A8 and Audi Q5 VINs:

Under certain driving conditions there may be a hesitation or a harsh downshift could be felt.

PRODUCTION SOLUTION

Engine and/or Transmission control unit software improved for certain vehicles.

SERVICE

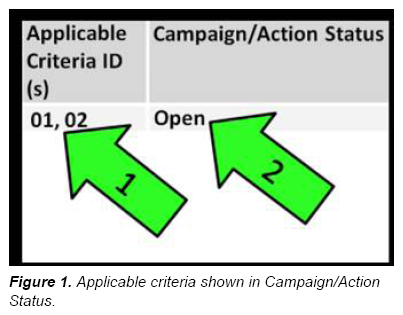

Before performing this Update, check ElsaWeb for Open Criteria. ALL open criteria must be completed.

WARRANTY

Update Time Requirements/Reimbursement	To ensure prompt and proper payment, be sure to immediately enter the applicable reimbursement code listed below upon completion of the repair work. Claims will be paid only for vehicles that show the 37G1 code in the ElsaWeb Campaign/Action Information screen on the day of repair.
37G1 Saga Claim Entry Procedure  Check ElsaWeb to determine whether RVU 37G1  is open. Service No.:  37G1 Damage Code:  0099 Parts Manufacturer -  Removed part: 002 Claim Type  Sold vehicle = 7 10 Unsold vehicle = 7 90 Saga Accounting Instructions
Criteria ID	Repair operation	Labor Operation Number	TU
01	Check software, no update needed	0183 0099	10 TU
	-OR-
	Check and Update ECM Software	2470 2599	20 TU
-AND/OR-
02	Check software, no update needed	0183 0199	20 TU
	-OR-
	Check and Update software	3735 2599	40 TU
-AND/OR-
03	Perform Standstill Adaption	3735 5799	60 TU
-AND/OR-
04	Perform Test Drive Adaption	3735 5899	30 TU
There is no reimbursement for vehicle wash or loaner vehicle. If the vehicle is outside of the specified warranty period, the customer has the option to pay for the repair.  If the customer agrees to pay for the repair:  Fax the information to (248) 754-5093 and provide VIN, applicable Service Number, Customer Info, Dealer Number and Date. If the customer does not agree to pay for the repair:  Fax the information to (248) 754-5093 and provide VIN, applicable Service Number, Customer Info, Dealer Number and Date.

Additional Actions	Some of the affected vehicles may be involved in additional Required Vehicle Update Technical Service Bulletins. Please check your ElsaWeb Campaign/Action Information screen so that any additional required work can be done simultaneously.
Update Verification	For verification, always  check the ElsaWeb Campaign/Action Information screen. The ElsaWeb system is the only  binding inquiry and verification system; other systems are not valid and may result in non-payment  of a claim.
Help for Claim Input	For questions regarding claim input, contact the Warranty Helpline. Please do not  contact the Campaign Helpline regarding claim input.
Required Customer Notification	Inform your customer in writing by recording on the Repair Order any and all work that was conducted on the vehicle, including any and all updates completed under this Update.

ADDITIONAL INFORMATION

The following Technical Service Bulletin will be necessary to complete this procedure:

• TSB 2011732 00 Software Version Management (SVM), operating instructions  .

All parts and service references provided in this RVU are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.

CONDITION

REVISION HISTORY
Revision	Date	Purpose
9	-	Revised header data (Added model years) Revised Technical Background  Revised Service  (Added image)
8	3/24/2010	Revised Technical Background  Revised Service  (Added Response Codes  section)
7	5/13/2009	Revised Service  (Step 6)
6	12/15/2008	Revised Service  (Step 3 - added information concerning use of wireless VAS 5054A transmitter head)
5	11/17/2008	Revised Title to include Repair Group
4	10/21/2008	Revised Service  (Step 3 - added information concerning Windows power savings settings)

This Technical Service Bulletin (TSB) details the general process for carrying out a Software Version Management (SVM) software update for any TSB or Update.

Troubleshooting information is included in the Additional Information  section.

Please refer to the upcoming TSBs covering detailed aspects of SVM. They will be listed under group "99".

TECHNICAL BACKGROUND

SVM was developed with the main goal of ensuring each Audi vehicle has the correct electronic control units with the correct software versions installed when it leaves the dealership repair facility.

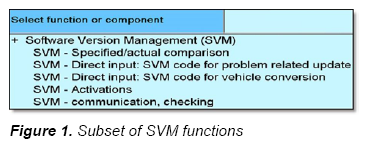

SVM is a feature of GFF that has a subset of functions or components as seen in Figure 1. These functions are explained below. A VAS 5051B, VAS 5052A, or VAS 6150(A/B/C) diagnostic tool is required to read out the vehicle control unit data and send it to the SVM server (also called an "SVM communication").

1. SVM - Specified/actual comparison

   Goal:  This function is designed to ensure all electronic control units installed in the vehicle have the correct part numbers, software versions, coding and parameterization. It will not suggest a control unit software update. During this SVM communication, the part numbers and software versions of the actual control units installed in the vehicle will be sent to the SVM servers. This "actual" data is then compared to the "specified" data in the SVM database for a particular vehicle. The specified data stored on the SVM servers is also referred to as the vehicle "reference".

   What an SVM Spec/Actual can do:

   • Document any changes to an electronic control unit's hardware/software part numbers, hardware/software versions, and provide feedback to the user if these changes are accepted or rejected.
   • When new parts are installed, it will also calculate coding changes or parameterization¹ changes. If a "hardware replacement suggestion" is given, then a conflict exists with the vehicle reference for that control unit (i.e. SVM expects a different part number or software version for the control unit in question).
   • As a rule, SVM will not allow a control unit with the same part number as the original part to be installed if the new part contains an older software revision. In this situation, SVM will return a hardware change suggestion² . In these special cases a new vehicle reference must be manually set by an Audi Product Support Engineer. Please contact the Technical Assistance Center Helpline if you suspect this is the case.
2. SVM - Direct Input: SVM code for problem related update

   Goal:  This function performs any additional functions which cannot be performed with an SVM Spec/Actual. Those functions include the following.

   What an SVM code can do:

   • Update the software in a flash-capable control unit if the SVM code³ is valid for the vehicle.
   • After the software update is completed, an additional SVM Specified/Actual comparison will be performed to calculate a new coding and/or parameterization and to document all control unit changes as a new reference in the SVM database.
   • SVM Codes should not be used to update a control unit without knowing the solution(s) the software update provides. To update control unit software, the technician must first diagnose the condition in the vehicle and find an applicable TSB that provides a valid SVM Code. Randomly trying out multiple SVM Codes wastes time and can sometimes cause conflicts in the SVM database.
   • SVM codes can also be used to document manual software updates to the vehicle's systems, as in the case with MMI Software Package (ZUG) updates. These types of updates are performed manually with a CD/DVD/SDcard. An SVM code for an MMI update documents the changes in the SVM database and provides coding and/or parameterization suggestions. It does not perform any software updates.

     SVM codes for MMI Software Package (ZUG) updates will only complete successfully if every control unit is updated to the correct software level. This is especially important when a control unit fails/dies during the manual software update process and is then later replaced, but not updated after it is installed. Since the new replacement control unit was not updated the SVM code will fail. The replaced control unit must be updated prior to running the SVM code.

   • SVM Exchange (XCHG) Codes can also be used to aid in the installation of new service parts when an SVM spec/actual cannot code or parameterize the replacement control unit, as with all Audi airbag control units.

   It is critical to note SVM XCHG codes must be run immediately after a new control unit is installed in the vehicle. If an SVM Spec/Actual is performed instead, it will create an invalid vehicle reference in the SVM database. Once this occurs the SVM XCHG code will not function properly. The only way to resolve this issue is to contact the Technical Assistance Center Helpline to have the vehicle reference manually set. To find the SVM XCHG code, follow the parts bulletin listed in ETKA or search for an applicable Technical Service Bulletin.

3. SVM - Direct Input: SVM code for vehicle conversion

   Goal:  This function allows for a factory approved retrofit of additional control unit(s) using a valid SVM Code for Vehicle Conversion.

   • This type of SVM code is documented inside the installation instructions for the control unit and is typically performed as the last installation step. You can identify an SVM code for conversion by the way it is named. They are typically named "050XXX".
4. SVM - Activations

   Goal:  This function is designed to activate additional features or functions within an already installed control unit using an Activation Code and possibly additional PIN codes or Customer codes.

   • This function is designed with a security system similar to installing a new operating system on a personal computer. Currently, SVM Activation codes are only being used with navigation map data updates for vehicles with MMI3G/3G+. The customer no longer needs to purchase the Navigation map data. Instead the customer must purchase an "Activation Packet" to unlock the map update in the MMI system. The Activation Packet consists of an Activation Code, Activate Number, and Pin Code. Once the Activation information is used, it becomes permanently tied to the customer's vehicle in the SVM database and cannot be reused with another vehicle.
5. SVM - communication, checking

   Goal:  This function allows the user to check the VAS Tester's SVM online connection status to ensure the tester is communicating with the SVM server.

   Tips:

   • ¹Parameterization  refers to data written into the control unit by SVM to customize the software functionality for the specific vehicle or country of operation. It is often referred to as the "calibration data." It is critical the parameterization is executed anytime it is suggested by SVM to ensure the proper functionality of the control unit. Not all control units are parameterized by SVM.
   • ² It is also important to note that if there are any "Hardware Change Suggestions" any time when an SVM code is run, a new vehicle "Reference" will NOT be set in the SVM database. This is to prevent any bad data from being documented in the reference. This can create an issue where repeat coding and/or parameterization suggestions are given with all subsequent SVM communications (Spec/Actual or SVM code). All "Hardware Change Suggestions" should be resolved prior to an SVM code being executed! Once the hardware issue is resolved, the SVM code must be run again to set the new reference.
   • ³ It is important to note that almost all SVM codes will automatically perform a "Quick Test" to verify if the SVM code is valid for the vehicle prior to performing the software update. This is done to speed up the process and provide immediate feedback to the tech of whether or not SVM will be able to code/parameterize the control unit after the software update is completed. If SVM finds an issue it will indicate the SVM code is valid for the vehicle, but cannot be completed.

PRODUCTION SOLUTION

Not applicable.

SERVICE

1. Address or record any DTCs related to any additional customer concerns before continuing. The reason for this is that any sporadic DTCs could be automatically erased at the end of the SVM communication.

   Tip:  Sporadic communication DTCs will be created during the flash procedure and will be automatically erased along with all other pre-existing sporadic DTCs at the end of the SVM test plan.

   Tuning  is the addition or modification of any component that causes an Audi vehicle to perform outside the normal parameters and specifications approved by Audi of America, Inc. If you encounter a vehicle with a tuned engine control module (ECM) or transmission control module (TCM), your dealership must do the following before performing any procedure that updates ECM or TCM programming:

   • Notify the owner that their ECM or TCM was found to have been tuned.
   • Notify the owner that any damage caused by the tuning of the ECM or TCM (including any adverse emissions consequences) will not be covered by Audi of America, Inc. warranties.
   • Obtain the owner's written consent (see attached Control Module Tuning form) for any requested repair - under warranty or outside warranty - that requires flashing that will automatically overwrite the tuned program.

   Tip:  Any programming update (flash) may overwrite any tuned ECM or TCM programming.

2. Ensure the TSB stating the condition in the vehicle applies to the customer complaint. Ensure the VAS Tester operator has a valid GeKo user ID and password. Perform only operations explicitly  stated in the TSB or Update.
3. Verify that the following tester requirements are met
   • VAS 5051B, VAS 5052A, or VAS 6150(A/B/C) with minimum Base CD Version 19.01 with Brand CD 19.36 installed.
   • Tester is plugged into an 110V AC power supply at all times.
   • Connect VAS 5051B and VAS 5052A to the local network via LAN/Ethernet cable.
   • Connect VAS 6150(A/B/C) to the local network via LAN/Ethernet cable. A WiFi connection is not recommended due to the possibility of signal dropouts during the online communication.
   • For B7 A4s after VIN 8E_5A400000, always use the 6017B K Line Adapter to ensure communication to all modules.
   • If the Bluetooth wireless VAS 5054A transmitter head is used in conjunction with a VAS 5052A or VAS 6150(A/B/C) tester, the transmitter head MUST BE connected with a USB cable to the tester.
   • Ensure the Windows power savings are set correctly (disabled) for VAS testers operating with an open Windows interface in which users have access to all regular PC operating system functions (implemented by running the Base V14.00.00 Recovery DVD).
   • VAS 5051B, VAS 5052A, or VAS 6150(A/B/C) with minimum Base CD Version 19.01 with Brand CD 19.36 installed.
   • Tester is plugged into an 110V AC power supply at all times.
   NOTE: If the Windows screensaver activates during a control module software update and the hard drive shuts down as a result of the power settings, a control module failure may result. Refer to Service Circular ATE-08-23 for more information.
   NOTE: Do not  use a 6017 or 6017A while flashing. Doing so may result in complete control module failure.
4. Verify that the following vehicle requirements are met:
   • Battery must have a minimum no-load charge of 12.5V.
   • Connect vehicle to a powered Audi-approved battery charger. Do not use a trickle charger or battery maintainer.
   • Turn off the radio and all other accessories, and when necessary, switch off running lights by applying the emergency brake or through the MMI option menu.
   • Turn off any appliances with high electromagnetic radiation (such as mobile phones).
   • If communication with a module cannot be properly established, appropriate repairs must be made before attempting SVM. If the tester cannot communicate with a module, the tester cannot flash software onto the module.

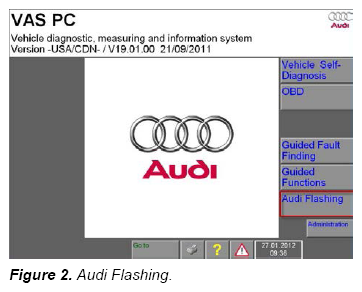

5. Enter the SVM code into the User Test Plan by selecting the Audi Flashing  option at the main tester screen, unless otherwise directed by the TSB or TAC Helpline.

   Tip:  If you do not have the latest Base/Brand CD installed on the tester, then the SVM code may fail and return an "ASM-MCD base system error" because the tester is not capable of reading the software flash file. Starting with the model year 2010, some software files have changed and cannot be read with base tester software level 15 or lower. Level 16 or higher must be installed on the tester along with all released patches found on ServiceNet. VAS Tester Patches can be found using → www.AccessAudi.com >> Special Tools and Equipment >> VAS Tester Information >> Software  .

6. Follow the SVM update procedure and enter the SVM Code found in the appropriate TSB when prompted.
   • Enter your GeKo ID when requested. Data will be transmitted to the SVM server, and the server will respond with instructions to continue. (See detailed descriptions in the Response Codes  table below.) The procedure may include one, or any combination of the following, for one or multiple control modules as specified in the TSB or Update:

   Update a control module (flash).

   Code a control module.

   Parameterize a control module.

   Check hardware of a control module.

   A hardware change suggestion will occur when SVM does not recognize the control module as valid for the vehicle. As stated before, there is a conflict between specified (i.e. reference) and actual hardware/software part number or software versions. If there is no customer concern and no DTC regarding this control module, report the issue then first ensure you have the correct part installed. Then check to see if there is an applicable TSB indicating an SVM XCHG code is required. Finally, if no part issue is found and no supporting TSB is found, then contact the Technical Assistance Center (TAC) with the required information specified in the Additional Information  section below. For MMI control units, it is possible the SVM code for feedback documentation was not performed after an update via CD was performed. Always report MMI issues to the TAC before  attempting a repair.

7. Always  continue until the following text is displayed: Vehicle conversion/update has been successfully performed. The changes have been stored in the system. Thank you.

   Tip:  The SVM Process must be completed in its entirety so the database receives the update confirmation response. A warranty claim may not be reimbursed if there is no confirmation response to support the claim or if action that is not explicitly  stated in the TSB or Update is taken.

8. Verify that all steps or special procedures mentioned in the TSB/UPDATE have been carried out. Then finish the test plan and exit GFF via the Go to  button. Answer the Warranty questions accordingly and print out or save the diagnostic log when prompted.

   Tip:  During the flash procedure an estimated time will be shown. This value is not used for actual SRT calculation.

WARRANTY

This TSB is informational only and not applicable to any Audi warranty.

ADDITIONAL INFORMATION

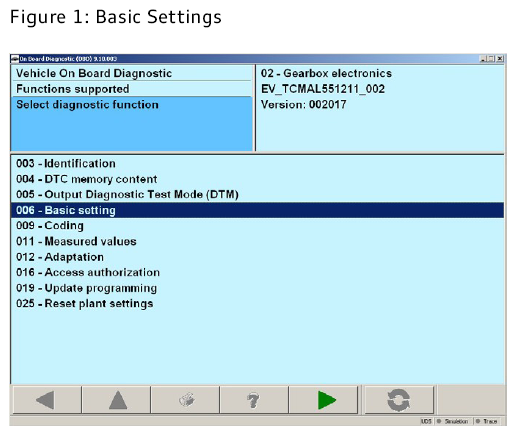

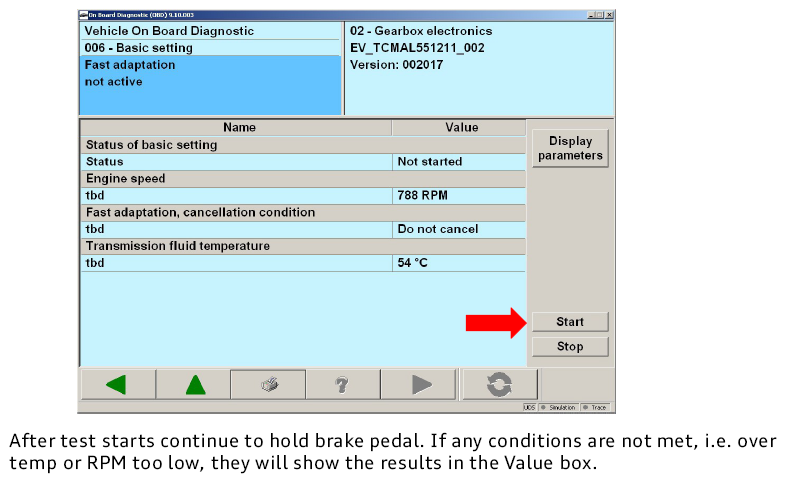

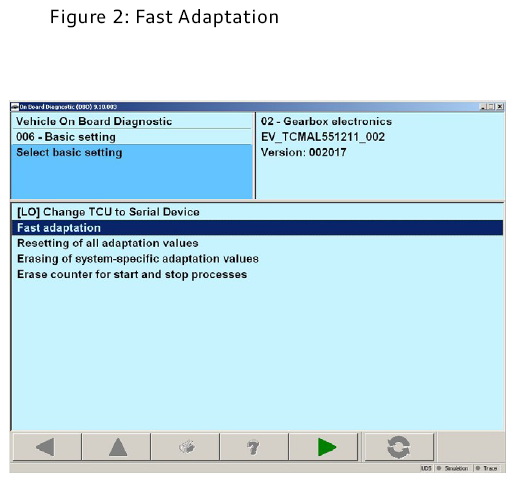

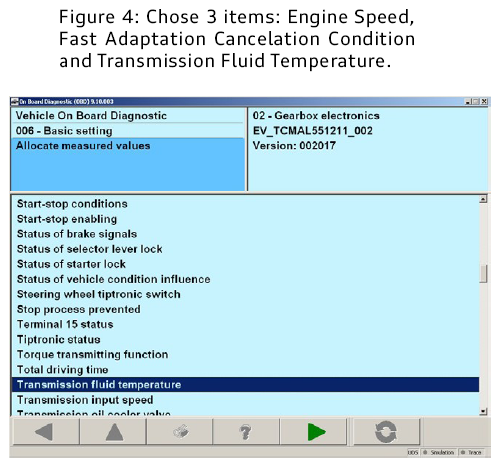

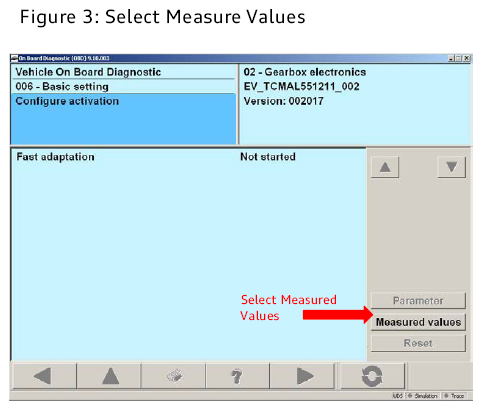

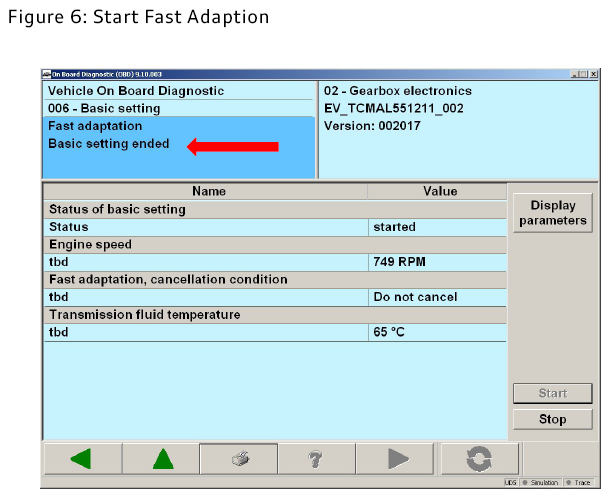

PROCEDURE: STANDSTILL ADAPTATION 8 SPEED TIPTRONIC
