Overview - EVAP System, Vehicles With Recuperation

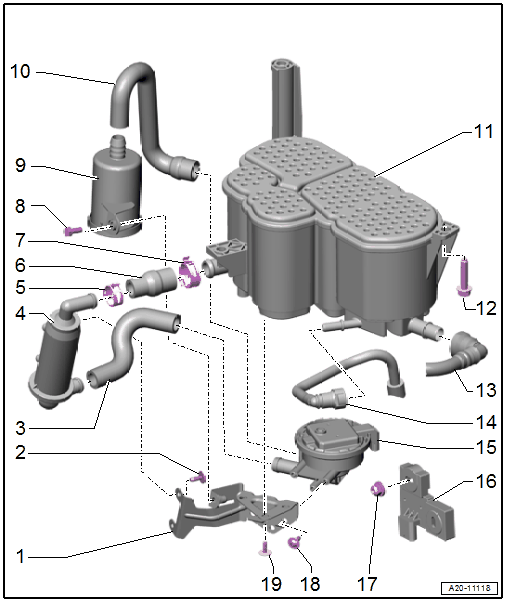

Fig 1: Overview Of EVAP System, Vehicles With Recuperation

Courtesy of AUDI OF AMERICA, LLC

1. Bracket
   • Removing and installing, refer to HONEYCOMB FILTER, REMOVING AND INSTALLING, VEHICLES WITH RECUPERATION .
2. Bolt
   • 2.2 Nm
   • Quantity: 2
3. Vent Hose
4. Honeycomb Filter
   • Removing and installing, refer to HONEYCOMB FILTER, REMOVING AND INSTALLING, VEHICLES WITH RECUPERATION .
5. Clamp
   • Must be appropriate for the model type .
6. Vent Hose
7. Clamp
   • Must be appropriate for the model type .
8. Bolt
   • 5 Nm
9. Air Filter
   • For Fuel Tank Pressure Sensor -G400-
   • Installed location: under the wheel housing liner in right rear wheel housing
   • Removing and installing, refer to FUEL TANK PRESSURE SENSOR -G400- AIR FILTER, REMOVING AND INSTALLING .
10. Vent Hose
11. Evaporative Emission (EVAP) Canister
    • Installed location: under the wheel housing liner in right rear wheel housing
    • Removing and installing, refer to EVAP CANISTER, REMOVING AND INSTALLING .
12. Bolt
    • 20 Nm
    • Quantity: 3
13. Breather Line
    • From the fuel tank
    • To disconnect, press release button on the connection piece.
14. Breather Line
    • To EVAP Canister Purge Regulator Valve 1 -N80-
    • To disconnect, press release button on the connection piece.
    • Clipped in the bracket
15. Fuel Tank Pressure Sensor -G400-
    • Installed location: under the wheel housing liner in right rear wheel housing
    • Checking in Guided Fault Finding  using the Vehicle Diagnostic Tester
    • Removing and installing, refer to FUEL TANK PRESSURE SENSOR -G400-, REMOVING AND INSTALLING .
16. Fuel Tank Leak Detection Control Module -J909-
    • Component location: Right front on the fuel tank
    • Removing and installing, refer to FUEL TANK LEAK DETECTION CONTROL MODULE -J909-, REMOVING AND INSTALLING .
17. Nut
    • 1.6 Nm
    • Quantity: 2
18. Bolt
    • 2.2 Nm
    • Quantity: 3
19. Bolt
    • 2.2 Nm
    • Quantity: 3
