Front Trim Bracket/Compressor/Control Module, Reclining/Multicontour Seat, Removing And Installing: Installing

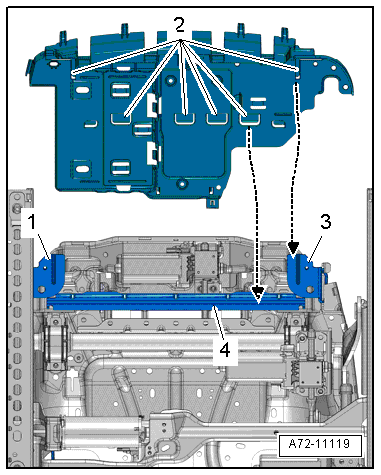

Fig 1: Bracket & Tabs

Courtesy of AUDI OF AMERICA, LLC

-- Insert front bracket -arrows- by making sure that the tabs -2- grip into the bracket -1, 3, 4-.

Installation is performed in reverse order of removal, noting the following:

WARNING:

Follow all pyrotechnic components safety precautions, refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
Observe all measures when installing the front seat, refer to FRONT SEAT, STANDARD/MULTICONTOUR SEAT, INSTALLING .
