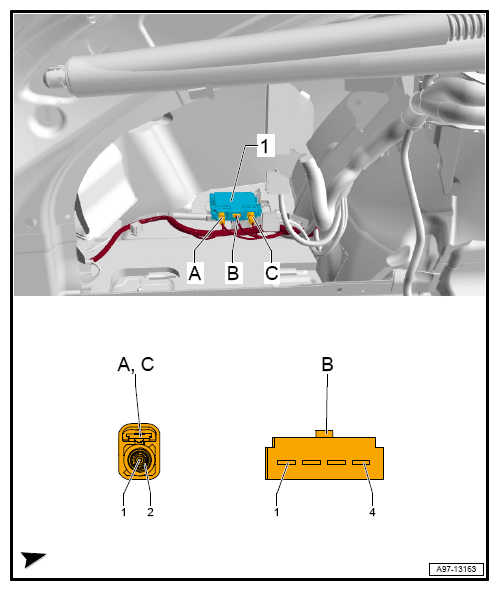

Cellular Telephone Amplifier -R86-, Connector Views, My 2015

1. 4-pin connector -T4az-

Courtesy of AUDI OF AMERICA, LLC

-T4az- (B)	Bezeichnung
1	Terminal 30, from fuse carrier 2 ST2 in fuse holder F SF
2	Terminal 31, to 50 mass point in the trunk left
3	Information control unit electronics 1 J794/holder for telephone R126
4
