Connector Station In Electronics Box, Plenum Chamber

  1. 6 - Not used
  2. 7 - 17-Pin Connector -T17b-, red
  3. 8 - 17-Pin Connector -T17a-, white

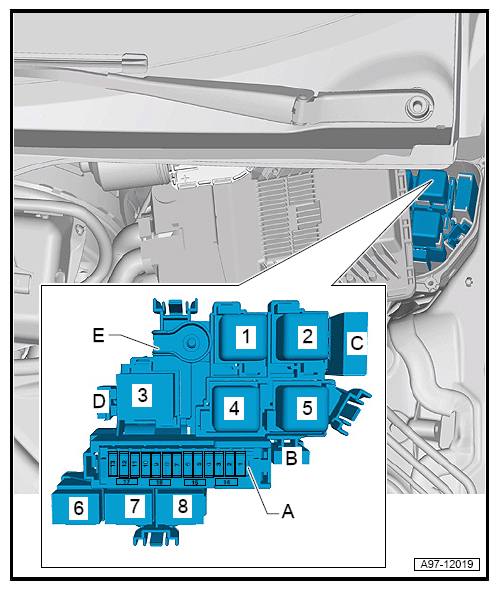

G12768011Courtesy of AUDI OF AMERICA, LLC

Back to overview → CONNECTOR STATIONS OVERVIEW  .
