A/C Compressor Regulator Valve -N280-, Removing And Installing: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Certain functions on the A/C Compressor Regulator Valve -N280- (for example, a stuck valve or a disruption in the coil) can lead to a complaint regarding the A/C compressor (A/C system doesn't cool, the evaporator ices over, etc.). If the cause is with the A/C Compressor Regulator Valve -N280- (and not the A/C compressor itself), the A/C compressor can be serviced by replacing the A/C Compressor Regulator Valve -N280- -C and D-.

Courtesy of AUDI OF AMERICA, LLC

The A/C Compressor Regulator Valve -N280- -C and D- is not available as a replacement part for all A/C compressors. If the A/C Compressor Regulator Valve -N280- is not available as an individual A/C compressor part, then the entire A/C compressor must be replaced.

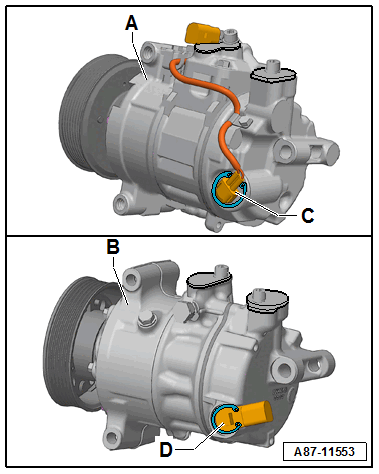

The A/C Compressor Regulator Valve -N280- is available in different versions and settings. On the A/C compressor -A- (shown is an A/C compressor manufactured by "Denso" without an A/C Clutch -N25-), the connector for the vehicle wiring harness connection is attached with a short wiring harness to the A/C Compressor Regulator Valve -N280- -C-. On the A/C compressor -B- (shown is an A/C compressor manufactured by "Sanden"), the connector for the vehicle wiring harness connection is mounted directly on the A/C Compressor Regulator Valve -N280- -C-. The removal and installation of the A/C Compressor Regulator Valve -N280- -C and D- on other A/C compressors (other type and manufacturer) is basically the same and only slightly deviates from the procedure described below.

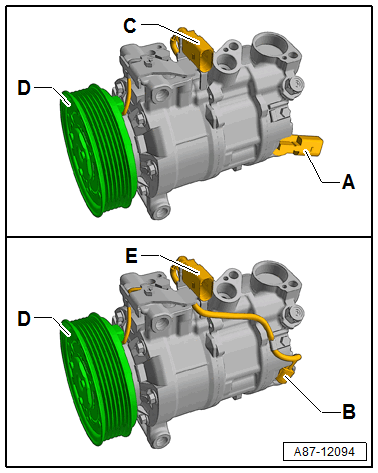

The A/C Compressor Regulator Valve -N280- is available in different versions and settings. On an A/C Compressor with an A/C Clutch -N25- (shown is an A/C compressor manufactured by "Denso"), the connector for the vehicle wiring harness connection is mounted directly on the A/C Compressor Regulator Valve -N280- -A-. On another A/C compressor, the connector for the vehicle wiring harness connection is combined in a 3-pin connector -E- for the A/C Clutch -N25- and the A/C Compressor Regulator Valve -N280-.

Courtesy of AUDI OF AMERICA, LLC

For version -B- of the A/C Compressor Regulator Valve -N280-, the wire connection may be directly connected to the A/C Compressor Regulator Valve -N280-, or there is an additional connector on the A/C Compressor Regulator Valve -N280-.

Removing and installing the A/C Compressor Regulator Valve -N280- -A and B- is essentially the same on both versions. It only deviates slightly from the procedure described below. On an A/C compressor with a 3-pin connector -E-, disconnect the respective wires to the A/C Compressor Regulator Valve -N280- from the A/C Compressor Regulator Valve -N280-, remove from the connector -E- or cut at a suitable location (and reattach using wire connectors from the Wiring Harness Repair Set:VAS1978B ).

If the A/C Compressor Regulator Valve -N280- malfunction was found to be caused by dirt, shavings or abraded A/C compressor material after the removal of the A/C Compressor Regulator Valve -N280-, clean the refrigerant circuit and replace the A/C compressor. Refer to COMPRESSOR, REPLACING ON ACCOUNT OF LEAKAGE OR INTERNAL DAMAGE and REFRIGERANT CIRCUIT, CLEANING (FLUSHING) WITH REFRIGERANT R134A .
