Climatronic Control Module -J255-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Note the general information. Refer to GENERAL INFORMATION FOR ADJUSTMENT MOTORS .

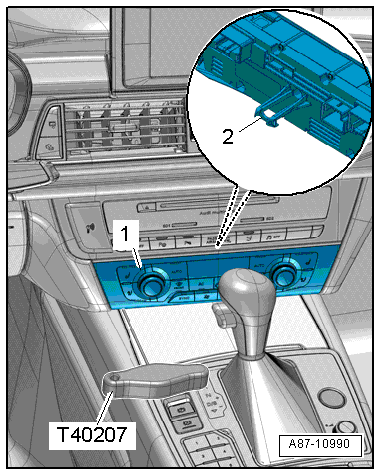

-- Carefully remove the control head -1- at the left and right side with the :T40207 out of the guides up to the first detent.
-- Tip the control head slightly downward and detach the hook -2- at the instrument panel.

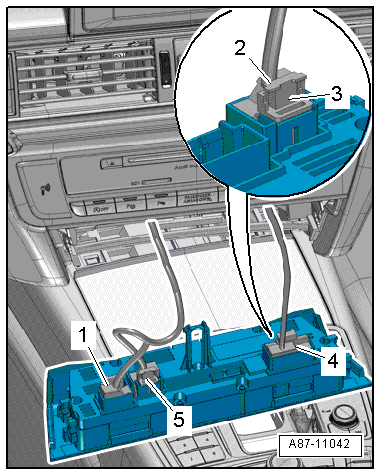

-- Slide the safety mechanism -2- upward and Press the release -3- inward to disconnect the connectors -1, 4 and 5-.
