Overview - Air Routing And Air Distribution

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

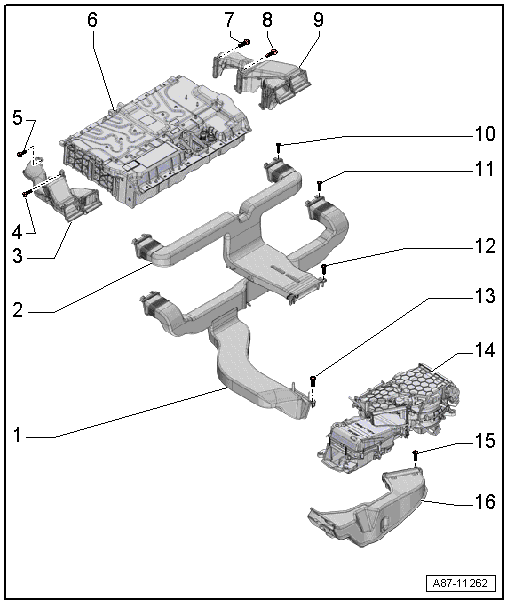

Fig 1: Exploded View Of Air Routing And Air Distribution
GWWA87-11262Courtesy of AUDI OF AMERICA, LLC
  1. Inlet Air Duct for the Traction Battery
  2. Front Outlet Air Guide for the Traction Battery
  3. Left Air Guide
  4. Bolt
    • 2 Nm
    • Quantity: 2
  5. Bolt
    • Use an additional bolt to attach the air guide if the retainers no longer hold. Remove the traction battery to do this .
  6. Traction Battery -A2-
    • Work on the Traction Battery -A2- is the same as for removing and installing it in the sense that the vehicle must be turned off and disabled, etc .
  7. Bolt
    • Use an additional bolt to attach the air guide if the retainers no longer hold.
  8. Bolt
    • 2 Nm
    • Quantity: 2
  9. Right Air Guide
  10. Bolt
    • Use an additional bolt to attach the air guide if the retainers no longer hold.
  11. Bolt
    • Use an additional bolt to attach the air guide if the retainers no longer hold.
  12. Bolt
    • Use an additional bolt to attach the air guide if the retainers no longer hold.
  13. Bolt
    • Use an additional bolt to attach the air guide if the retainers no longer hold.
  14. Battery Cooling Module
  15. Bolt
    • Use an additional bolt to attach the air guide if the retainers no longer hold.
  16. Rear Outlet Air Guide for the Traction Battery
