Bracket For Thermal Management Control Module - J1024- (And Subframe Mount Control Module -J931-), Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition.
-- Remove the right front wheel housing liner. Refer to WHEEL HOUSING LINER . .
-- Disengage and remove the connector -A-.

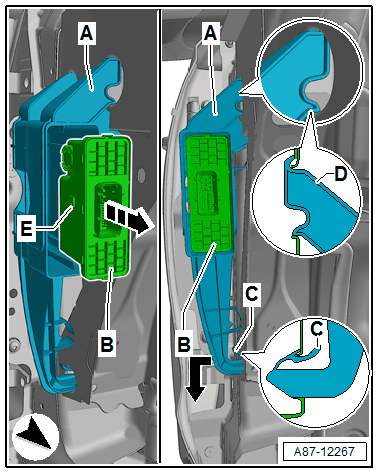

-- Release the locking mechanism -C- of the bracket -A-.
-- Carefully pivot the bracket -A- (with the control module -B-) toward the fender, detach it downward from the mount -D- and remove -arrow-.
