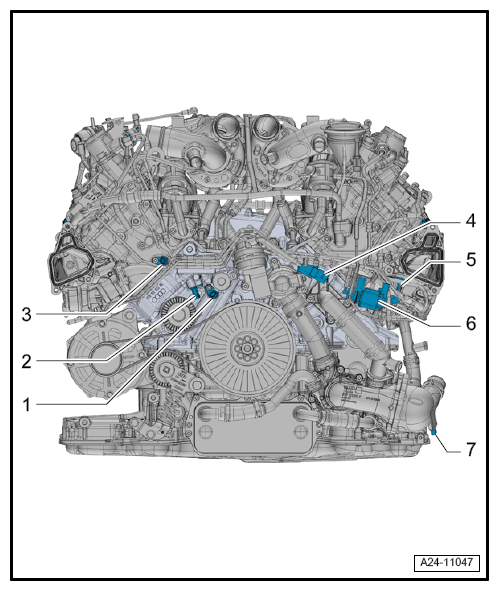

4.0L FSI CEUC/CRDB/CTGE/CWUB/CWUC Front View
- 1 - Oil temperature sensor 2 -G664-
- 2 - Engine coolant temperature sensor -G62-
- 3 - Engine temperature control sensor -G694-
- 4 - Cylinder head coolant valve -N489-
- 5 - Intake manifold runner position sensor 2 -G512-
- 6 - Wastegate bypass regulator valve -N75-
- 7 - Map controlled engine cooling thermostat -F265-
