Special Tools

WARNING: This page is about a different car, the 2015 Audi S6, 2014 Audi S6, and 2013 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Special Tools And Workshop Equipment

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

Pry Lever 80-200
Step Ladder VAS5085
Engine Bung Set VAS6122
Scissor Lift Table VAS6131B with Scissor Lift Table - Audi Set VAS6131/10, Scissor Lift Table - A8 Set VAS6131/11 and Scissor Lift Table - Q7 Set VAS6131/13
Shop Crane - Drip Tray VAS6208
Hose Clip Pliers VAS6362

Special tools and workshop equipment required

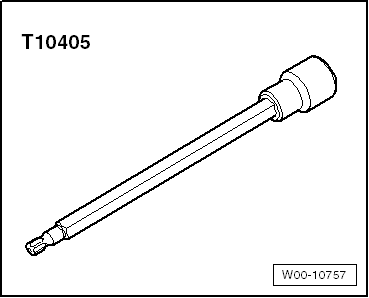

Socket T30T10405

Fig 2: Socket T10405
Courtesy of AUDI OF AMERICA, LLC
Clutch Module Assembly Aid T40169 for vehicles with a DSG transmission 0B5

Fig 3: Assembly Aid T40169
Courtesy of AUDI OF AMERICA, LLC
Clutch Module Transportation Lock T40170

Fig 4: Identifying Transportation Lock T40170
Courtesy of AUDI OF AMERICA, LLC
Wrench - 21mm T40263

Fig 5: Identifying Wrench 21 mm T40263
Courtesy of AUDI OF AMERICA, LLC

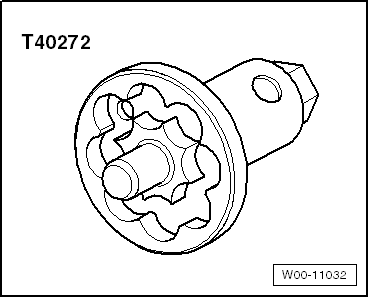

Crankshaft Turning Tool T40272

Fig 6: Identifying Crankshaft Turning Tool T40272
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 1332 Insert - Ring Wrench - 16mm VAG1332/14

Fig 7: Identifying Ring Spanner Insert AF 16 V.A.G 1332/14
Courtesy of AUDI OF AMERICA, LLC
Engine And Transmission HolderVAS6095 with Engine/Transmission Holder - V8 Engine Bracket VAS6095/1-13

Fig 8: Identifying Engine And Transmission Holder VAS 6095
Courtesy of AUDI OF AMERICA, LLC
Shop CraneVAS6100

Fig 9: Identifying Shop Crane
Courtesy of AUDI OF AMERICA, LLC
Lift Arm Extension VAS6101

Fig 10: Identifying Lift Arm Ext./Workshop Hoist VAS 6101
Courtesy of AUDI OF AMERICA, LLC
Scissor Lift Table - Audi Set VAS6131/10, Scissor Lift Table - A8 Set VAS6131/11 and Scissor Lift Table - Q7 Set Articulated Joint Support VAS6131/13-7
Hose Clip Pliers VAS6340

Fig 11: Identifying Hose Clamp Pliers
Courtesy of AUDI OF AMERICA, LLC
Used Oil Collection and Extraction Unit SMN372500

Fig 12: Identifying Used Oil Collection And Extraction Unit
Courtesy of AUDI OF AMERICA, LLC
Engine Support Bridge 10-222A

Fig 13: Identifying Engine Support Bridge
Courtesy of AUDI OF AMERICA, LLC

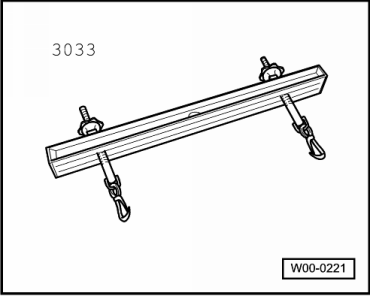

Lifting Tackle 3033

Fig 14: Identifying Lifting Tackle 3033
Courtesy of AUDI OF AMERICA, LLC
Hose Clamps - Up To 25 mm 3094

Fig 15: Identifying Hose Clamps
Courtesy of AUDI OF AMERICA, LLC
