Rear Lid Control Module -J605-, Removing And Installing, Avant

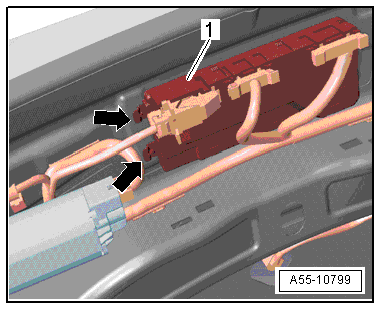

Fig 1: Identifying Rear Lid Control Module -J605-, Avant

Courtesy of AUDI OF AMERICA, LLC

-- Remove the roof rear trim panel. Refer to Removal and Installation .

-- Disconnect electrical connectors.

-- Open the retainers -arrows- and remove the control module -1- to the side.

-- Insert the control module into the bracket and then slide it forward until it clicks into place.
