Rear Lid Control Module -J605-, Connector Views, AVANT

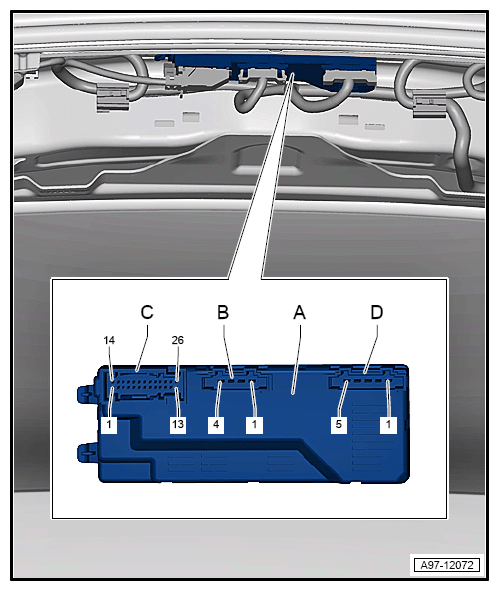

26-Pin Connector -T26b- (C)/5-Pin Connector -T5ae- (D)/4-Pin Connector -T4bx- (B)

G12768209

Courtesy of AUDI OF AMERICA, LLC
