Power Sunroof Control Module -J245-, Connector Views

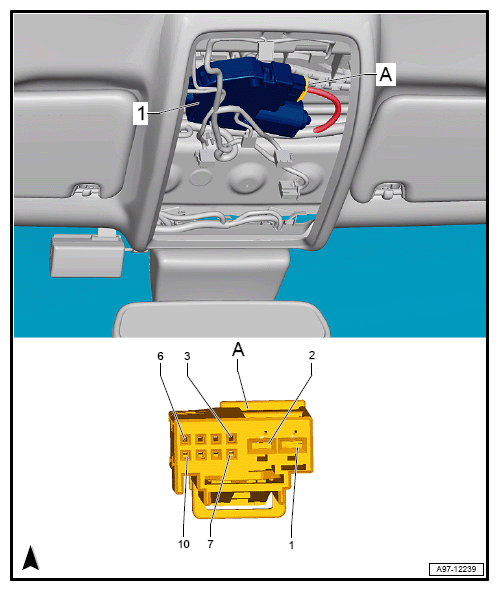

- 10-Pin Connector -T10ap-
| T10ap (A) | Designation |
|---|---|
| 1 | LIN-Bus, B577 LIN bus connection (in roof wiring harness) B699 LIN-Bus Connection 4 (in main wiring harness) Comfort System Central Control Module J393 |
| 2 | |
| 3 | Sunroof Button E325 |
| 4 | Sunroof Button E325 |
| 5 | 6-Pin Connector T6g |
| 6 | Sunroof Button E325 |
| 7 | Sunroof Button E325 |
| 8 | |
| 9 | Terminal 31, to 178 Ground connection (in sunroof wiring harness) 369 Ground Connection 4 (in main wiring harness) 44 Ground Connection (on left lower A-pillar) |
| 10 | Terminal 30, from Fuse Panel B SB |
