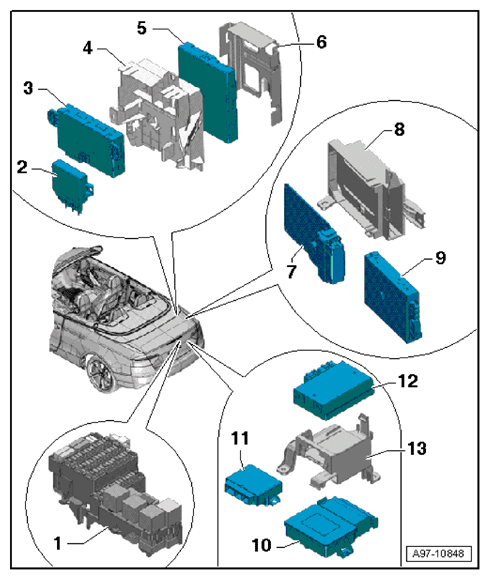

Control Modules Assembly Overview
- 1 - Fuse Panel F -SF-
- 2 - Parking Aid Control Module -J446-
- 3 - Convertible Top Control Module -J256-
- 5 - Comfort System Central Control Module -J393-
- 7 - Electronic Damping Control Module -J250-
- 9 - Rear View Camera System Control Module -J772-
- 10 - Electro-Mechanical Parking Brake Control Module -J540-
- 11 - Vehicle Positioning System Interface Control Module -J843-
- 12 - Towing Recognition Control Module -J345-
