Data Bus On Board Diagnostic Interface Overview

WARNING: This page is about a different variant/trim than selected.

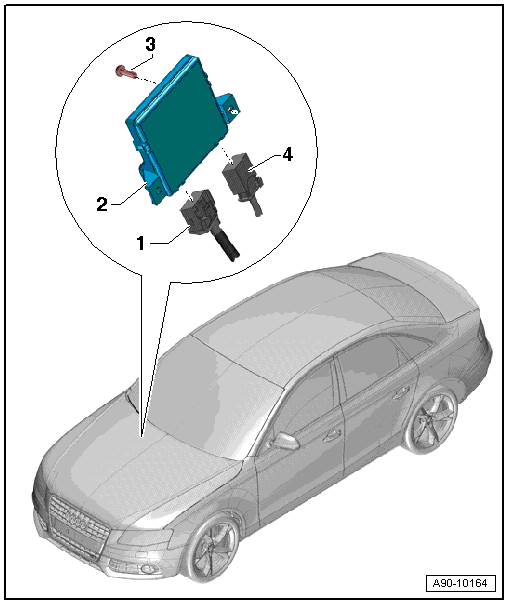

Fig 1: Data Bus On Board Diagnostic Interface Overview
GWWA90-10164Courtesy of AUDI OF AMERICA, LLC
  1. Electrical Connector
    • For the data bus on board diagnostic interface.
  2. Data Bus On Board Diagnostic Interface -J533-
  3. Bolt
    • 3 Nm
  4. Fiber Optic Cable Connector
    • Attach with the protective cap for cable connector VAS 6223/9.
