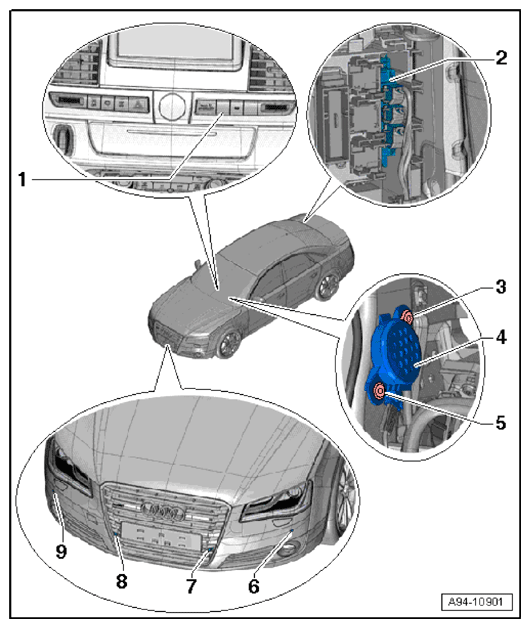

Parking Aid Assembly Overview: Notes
- Parking aid button -E266-
- Only with 8-channel parking aid
- Parking aid control module -J446-
- In rear luggage compartment, behind trim
- Expanding Clip
- Front parking aid warning buzzer -H22- → FRONT PARKING AID WARNING BUZZER
- Only with 8-channel parking aid
- Expanding Clip
- Left front parking aid sensor -G255-
- Left front center parking aid sensor -G254-
- Right front center parking aid sensor -G253-
- Right front parking aid sensor -G252-
