Reducing Agent Delivery Unit Pump

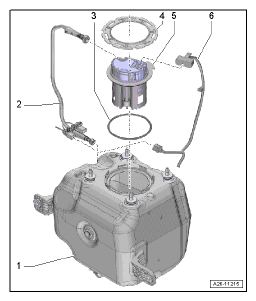

5  - Reducing Agent Delivery Unit which includes Reducing agent pump -V437-, Reducing agent metering system pressure sensor -G686-, Reducing agent reservoir sensor -G697-, Reducing agent temperature sensor -G685- and Reducing agent tank heater (heating circuit 1) -Z102-

G12770581Courtesy of AUDI OF AMERICA, LLC
