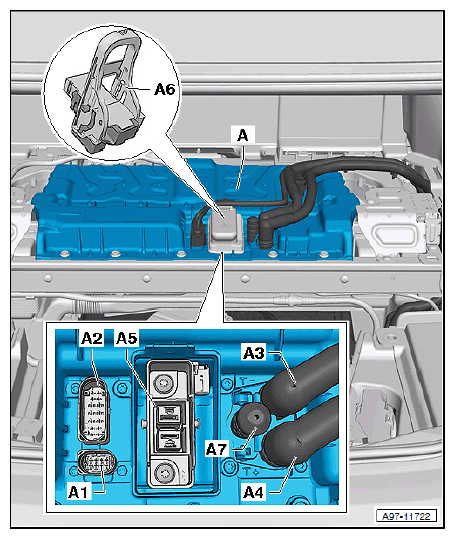

Component Location Traction Battery -A2-

Component Location

Under Cover Of Luggage Compartment -A-.

1. A  - Vehicle Battery -A2-

   Internal Components: Hybrid Battery Unit -AX1-, Battery Regulation Control Module -J840-, Hybrid Battery -A38-

2. A1  - 8-Pin Connector -T8BA-, Black
3. A2  - 14-Pin Connector -T14M-, Black
4. A3  - Single Connector -T1ab-, Hybrid Battery High Voltage Cable, Negative Terminal -P2-
5. A4  - Single Connector -T1aa-, Hybrid Battery High Voltage Cable, Positive Terminal -P1-
6. A5  - Connection for High Voltage System Maintenance Connector -TWA6
7. A6  - High Voltage System Maintenance Connector -TW- with High Voltage System Fuse -S350-
8. A7  - Safety Connector 1 -TV44-

Courtesy of AUDI OF AMERICA, LLC
