Component Location Electric Drive Power And Control Electronics -JX1-

Component Location

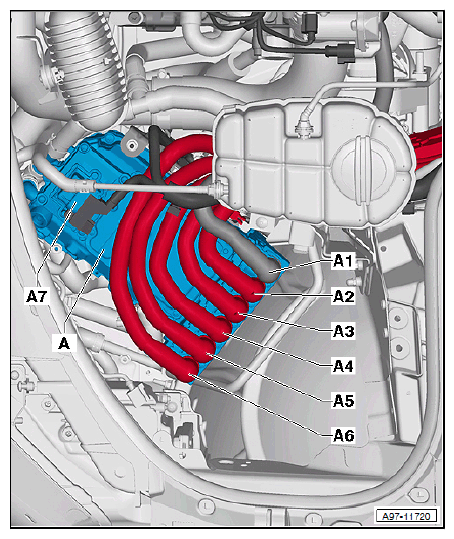

In Front Left In Engine Compartment -A-.

1. A  - Electric Drive Power and Control Electronics -JX1-

   Internal Components:  Electrical Drive Control Module -J841-, Drive Motor Inverter -A37-, Voltage

   Converter -A19-, Intermediate Circuit Capacitor 1 -C25-

2. A1  - 4-Pin Connector -T4ih-, Electrical A/C Compressor High Voltage Cable -P3-
3. A2  - Single Connector -T1y-, Hybrid Battery High Voltage Cable, Positive Terminal -P1-
4. A3  - Single Connector -T1z-, Hybrid Battery High Voltage Cable, Negative Terminal -P2-
5. A4  - Single Connector -T1u-, Drive Motor High Voltage Cable 3 -P6-
6. A5  - Single Connector -T1t-, Drive Motor High Voltage Cable 2 -P5-
7. A6  - Single Connector -T1s-, Drive Motor High Voltage Cable 1 -P4-
8. A7  - 28-Pin Connector -T28b-, black

Courtesy of AUDI OF AMERICA, LLC
