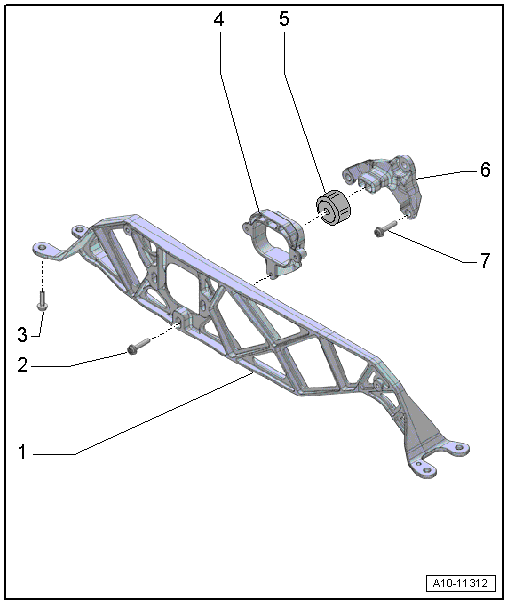

Torque Support and Crossmember, Vehicles with FWD
WARNING: This page is about a different car, the 2014 Audi A8 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Crossmember
- for torque bracket
- Removing and installing, refer to TORQUE SUPPORT AND CROSSMEMBER, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- Bolt
- 20 Nm
- Stop
- Adjusting Buffer
- Torque Bracket
- Removing and installing, refer to TORQUE SUPPORT AND CROSSMEMBER, REMOVING AND INSTALLING .
- Adjusting, refer to TORQUE SUPPORT, ADJUSTING .
- Bolt
- 20 Nm + an additional 90° turn
