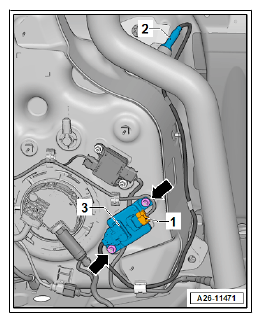

NOX Sensor Control Module 2 -J881-/NOX Sensor 2 -G687-

  1. 2  - NOx Sensor Control Module 2 -J881-
  2. 3  - NOx Sensor 2 -G687-

Top → COMP. LOC. ENGINE

G12779263Courtesy of AUDI OF AMERICA, LLC
