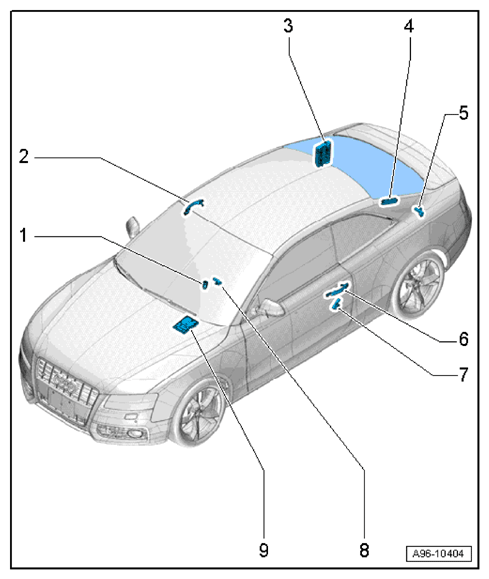

Keyless Access System Assembly Overview: Notes
- Access/Start Authorization Button -E408-
- Component location: In installation frame for Multimedia Control Head -E380-
- Passenger's Side Outside Door Handle
- With the Right Front Outside Door Handle Touch Sensor -G606-
- Comfort System Central Control Module -J393-
- Component location: Behind right luggage compartment side trim
- Central Locking and Anti-Theft Alarm System Antenna -R47-
- Integrated in the rear window
- Luggage Compartment Access/Start Authorization Antenna -R137-
- Component location: An left luggage compartment rear lid end panel → LUGGAGE COMPARTMENT ACCESS/START AUTHORIZATION ANTENNA
- Driver's Side Outside Door Handle
- With the Left Front Outside Door Handle Touch Sensor -G605-
- Left Access/Start Authorization Antenna -R200-
- Component location: At rear door trim → INTERIOR ACCESS/START AUTHORIZATION ANTENNA
- Interior Access/Start Authorization Antenna 1 -R138-
- Component location: Beneath front center console → INTERIOR ACCESS/START AUTHORIZATION ANTENNA
- Electronic Steering Column Lock Control Module -J764-
- Component location: On steering coulmn → LUGGAGE COMPARTMENT ACCESS/START AUTHORIZATION ANTENNA
