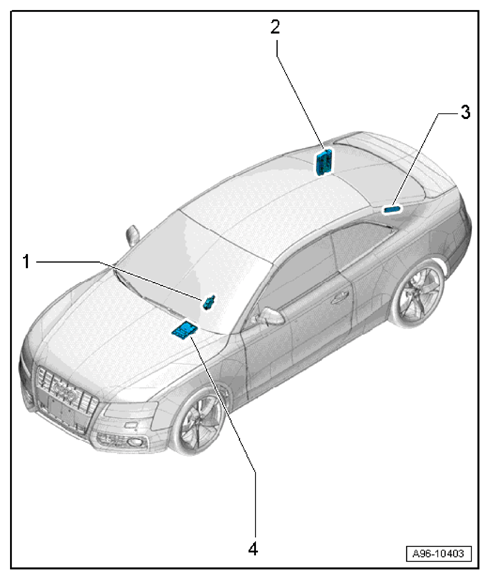

Access/Start Authorization System Assembly Overview

1. Access/Start Authorization Switch -E415-
   • Component location: In instrument panel, driver's side
2. Comfort System Central Control Module -J393-
   • Component location: Behind right luggage compartment side trim
3. Central Locking and Anti-Theft Alarm System Antenna -R47-
   • Integrated in the rear window
4. Electronic Steering Column Lock Control Module -J764-
   • Component location: On steering coulmn → ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE

Courtesy of AUDI OF AMERICA, LLC
