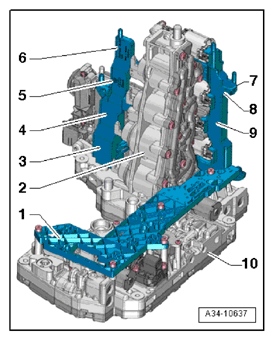

MECHATRONIC Module

  1. Circuit Board 1
  2. Gear Selector Module
  3. Gear Position Distance Sensor 1 -G487- for gear selector 2-R
  4. Gear Position Distance Sensor 2 -G488- for gear selector 1-3
  5. Gear Position Distance Sensor 3 -G489- for gear selector 7-5
  6. Gear Position Distance Sensor 4 -G490- for gear selector 4-6
  7. Clutch Oil Temperature Sensor -G509-
  8. Transmission Input Speed (RPM) Sensor 3 -G641- for the clutch input speed sensor
  9. Circuit Board 2
  10. Electro-Hydraulic Control Module
G12767096Courtesy of AUDI OF AMERICA, LLC
