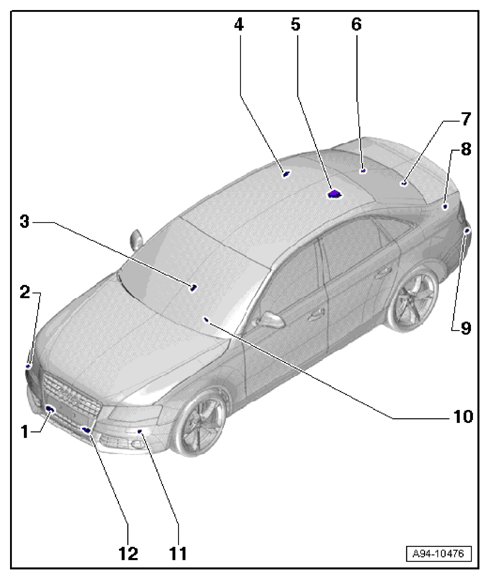

Parking Aid System Overview: Notes
- Right Front Center Parking Aid Sensor -G253-
- In the radiator grille
- Right Front Parking Aid Sensor -G252-
- In front bumper cover
- Parking Aid Button -E266-
- Only with 8-channel parking aid
- Component location → PARKING AID BUTTON -E266-
- Rear Parking Aid Warning Buzzer -H15-
- On the right rear belt relay point → REAR PARKING AID WARNING BUZZER
- Parking Aid Control Module -J446-
- In luggage compartment at rear, right side, below side trim → PARKING AID CONTROL MODULE -J446-
- Right Rear Parking Aid Sensor -G206-
- In rear bumper cover
- Right Rear Center Parking Aid Sensor -G205-
- In rear bumper cover
- Left Rear Center Parking Aid Sensor -G204-
- In rear bumper cover
- Left Rear Parking Aid Sensor -G203-
- In rear bumper cover
- Front Parking Aid Warning Buzzer -H22-
- Only with 8-channel parking aid
- At the instrument panel carrier behind the driver side storage compartment → FRONT PARKING AID WARNING BUZZER
- Left Front Parking Aid Sensor -G255-
- In front bumper cover
- Left Front Center Parking Aid Sensor -G254-
- In the radiator grille
