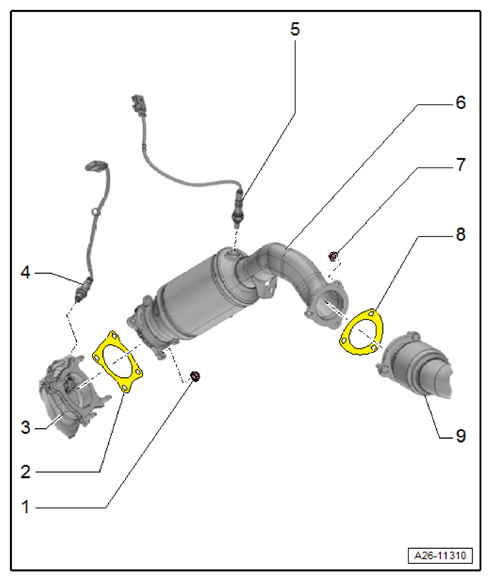

2.0L CAEB/CAED/CPMA/CPMB Exhaust Overviews

  1. 4  - Heated Oxygen Sensor (HO2S) -G39- with Oxygen sensor heater -Z19-
  2. 5  - Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) -G130- with Heater for oxygen sensor 1 after catalytic converter -Z29-
    G12767914Courtesy of AUDI OF AMERICA, LLC
