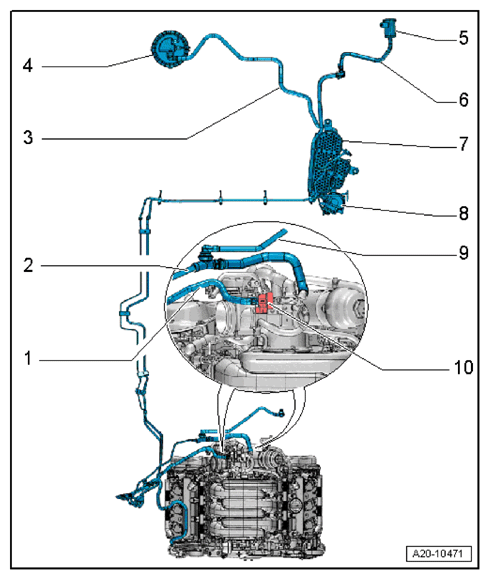

EVAP Canister And Leak Detection System Hose Diagram
NOTE:
4Cyl, 6Cyl And 8Cyl System Are Similar
- 4 - Fuel Tank Flange
- 7
- EVAP Canister
- Component location: Under the bottom of the luggage compartment.
- 8
- Leak Detection Pump (LDP) -V144-
- Component Location: On the EVAP Canister Under The Bottom Of The Luggage Compartment.
- 10
- Evaporative Emission (EVAP) Canister Purge Regulator Valve 1 -N80-
For 2.0L Gasoline Engine CAEB/CAED/CPMA/CPMB, refer to → " 2.0L CAEB/CAED/CPMA/CPMB LEFT SIDE "
