3.0L CCBA/CGXC/CTUB Right Side: Notes

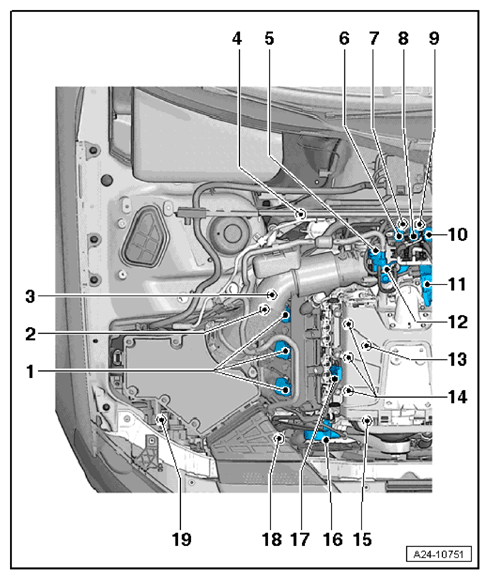

  1. Ignition coil 1 with power output stage -N70-, Ignition coil 2 with power output stage -N127-, Ignition coil 3 with power output stage -N291-, Ignition coil 4 with power output stage -N292-
  2. Heated Oxygen Sensor (HO2S) -G39-  → 3.0L CCBA/CGXC/CTUB EXHAUST OVERVIEW
  3. Camshaft Adjustment Valve 1 -N205-  → CYLINDER BANK 1 (RIGHT)
  4. Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) -G130-  → 3.0L CCBA/CGXC/CTUB EXHAUST OVERVIEW
  5. Evaporative Emission (EVAP) Canister Purge Regulator Valve 1 -N80-  → EVAP SYSTEM ASSEMBLY OVERVIEW
  6. Secondary Air Injection (AIR) Solenoid Valve -N112-  → INSTALLED LOCATION ON THE BACK OF THE ENGINE
  7. Intake Air Temperature (IAT) Sensor -G42-/Manifold Absolute Pressure (MAP) Sensor -G71-  → INSTALLED LOCATION ON THE BACK OF THE ENGINE
  8. Intake Manifold Runner Control (IMRC) Valve -N316-  → INSTALLED LOCATION ON THE BACK OF THE ENGINE
  9. Secondary Air Injection Sensor 1 -G609-
  10. Secondary Air Injection (AIR) Solenoid Valve 2 -N320-  → INSTALLED LOCATION ON THE BACK OF THE ENGINE
  11. Control Valve Control Module -J808-  → CONTROL VALVE CONTROL MODULE
  12. Throttle Valve Control Module -J338-  → THROTTLE VALVE CONTROL MODULE
    • Integrated with Throttle Drive (for Electronic Power Control (EPC)) -G186-, Throttle Drive Angle Sensor 1 (for Electronic Power Control (EPC) -G187-, and Throttle Drive Angle Sensor
    G12766982Courtesy of AUDI OF AMERICA, LLC

    2 (for Electronic Power Control (EPC) -G188-

  13. 13 - Knock Sensor 1 -G61-  → UNDER THE INTAKE MANIFOLD, CYLINDER BANK 1 (RIGHT)
  14. 14 - Fuel Injectors, Cylinder Bank 1  → UNDER THE INTAKE MANIFOLD, CYLINDER BANK 1 (RIGHT)
    • Cylinder 1 Fuel Injector -N30-
    • Cylinder 2 Fuel Injector -N31-
    • Cylinder 3 Fuel Injector -N32-
  15. 15 - Intake Manifold Runner Position Sensor -G336-  → INTAKE MANIFOLD RUNNER POSITION SENSOR 2
  16. 16 - Camshaft Position (CMP) Sensor -G40-  → CYLINDER BANK 1 (RIGHT)
  17. 17 - Charge Air Pressure Sensor -G31-/Intake Air Temperature (IAT) Sensor -G72-  → CHARGE AIR PRESSURE SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR
  18. 18 - Fuel High Pressure Pump  → COMPONENT LOCATION ON THE HIGH PRESSURE PUMP
    • Fuel Metering Valve -N290-
    • Low Fuel Pressure Sensor -G410-
  19. 19 - Secondary Air Injection (AIR) Pump Motor -V101-  →
