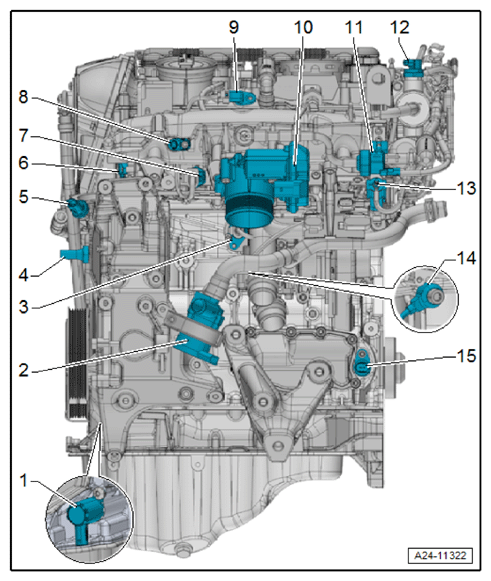

2.0L CAEB/CAED/CPMA/CPMB Left Side
- Oil Pressure Regulation Valve -N428-
- After-Run Coolant Pump -V51-
- Engine Coolant Temperature Sensor -G62-
- Oil Pressure Switch -F22-
- Reduced Oil Pressure Switch -F378-
- Depending on the engine installed, there are different installed positions
- Intake Manifold Runner Position Sensor -G336-
- Fuel Pressure Sensor -G247-
- Intake Air Temperature Sensor -G42-
- Camshaft Position Sensor -G40-
- Throttle Valve Control Module -J338-
- With Throttle Drive (Power Accelerator Actuation) -G186-, Angle Sensor 1 For Throttle Drive (Power Accelerator Actuation) -G187- and Angle Sensor 2 For Throttle Drive (Power Accelerator Actuation) -G188-
- EVAP Canister Purge Regulator Valve 1 -N80-
- Fuel Pressure Regulator Valve -N276-
- Integrated in the high pressure pump
- Intake Manifold Runner Control Valve -N316-
- Knock Sensor 1 -G61-
- Engine Speed Sensor -G28-
