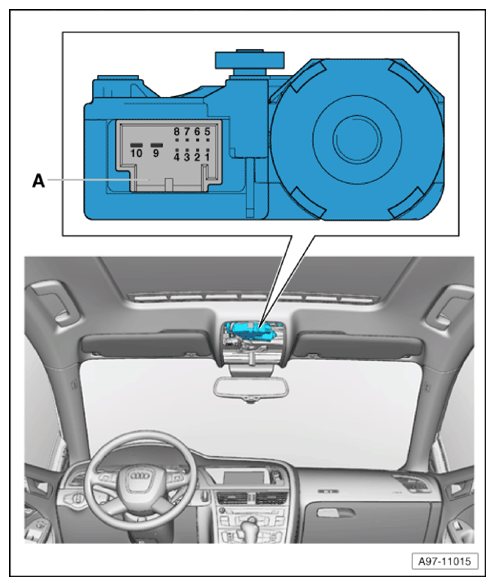

Power Sunroof Control Module -J245- With Sunroof Motor -V1-

Component Location:

In Roof Module, On Upper Front Roof Frame

Connector:

  1. 10-Pin Connector -T10c-
G12766900Courtesy of AUDI OF AMERICA, LLC
