Overview Of Control Modules In Rear Part Of Vehicle - AVANT (5-Door Models)

  1. 1 - All-Wheel Drive Control Module -J492-
  2. 2 - Comfort System Central Control Module -J393-
  3. 2 - Amplifier for Telephone -R86-
  4. 2 - Electronic Damping Control Module -J250-
  5. 2 - Rear View Camera System Control Module -J772-
  6. 2 - Towing Recognition Control Module -J345-
  7. 2 - Parallel Parking Assistance Control Module -J791-
  8. 2 - Electro-Mechanical Parking Brake Control Module -J540-
  9. 3 - Lane Change Assistance Control Module -J769-
    • Component Location: Inside rear bumper
  10. 4 - Digital Sound System Control Module -J525-
    • Component Location: In left luggage compartment, behind side panel trim
  11. 4 - Radio -R- (K-Box)
    • Models with MMI High
    • Component Location: In left luggage compartment, behind side panel trim
  12. 4 - Satellite Radio -R146-
    • Component Location: In left luggage compartment, behind side panel trim
  13. 4 - Digital Radio -R147-
    • Component Location: In left luggage compartment, behind side panel trim

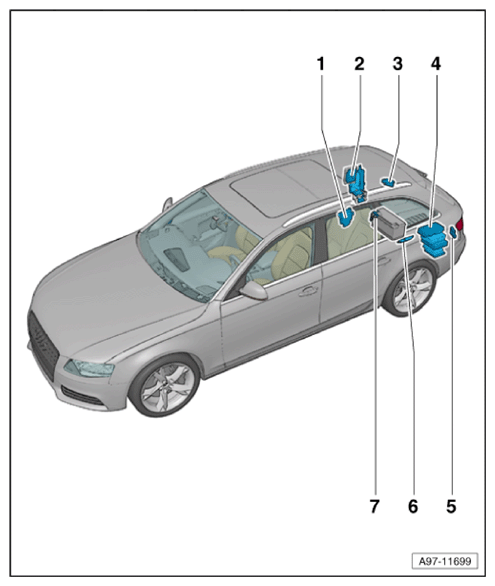

    G12760096Courtesy of AUDI OF AMERICA, LLC
  14. 4 - Navigation System Control Module with CD Drive -J401-
    • Component Location: In left luggage compartment, behind side panel trim
  15. 4 - TV Tuner -R78-
    • Component Location: In left luggage compartment, behind side panel trim
  16. 5 - Lane Change Assistance Control Module 2 -J770-
    • Component Location: Inside rear bumper
  17. 6 - Voltage Stabilizer -J532-
  18. 7 - Battery Monitoring Control Module -J367-
    G12760096Courtesy of AUDI OF AMERICA, LLC
