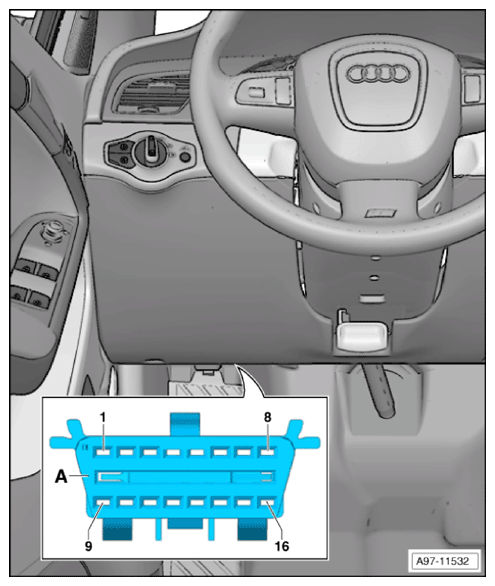

16-Pin Connector -T16-, Data Link Connector
16-Pin Connector -T16-, Data Link Connector
Component Location:
Instrument Panel Driver's Side, Bottom.
16-Pin Connector -T16-, Data Link Connector
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
